Magneto Optical Crystals
Created with Pixso. Crystro Magneto Optical Crystal Terbium Gallium Garnet For Farday Rotator

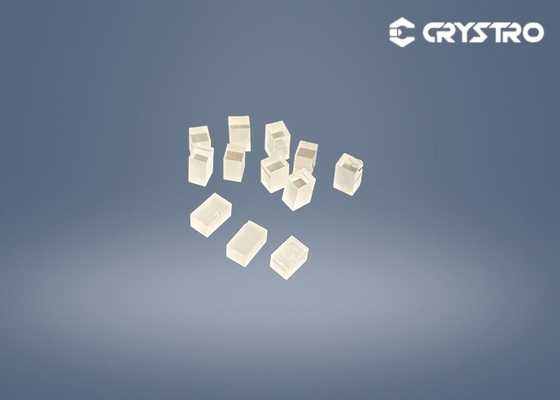

Crystro Magneto Optical Crystal Terbium Gallium Garnet For Farday Rotator

Brand Name: Crystro
Model Number: JCR200615-05
MOQ: 1pc
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS/REACH
Material:
Terbium Gallium Garnet
Service:
Customization
Formula:
Tb3Ga5O12
Length Tolerance:
+/-0.2mm
High Isolation:
Up To 40dB
Surface Quality:
10/5 Polish
AR Coating:
R<0.2%
Wave Front Distortion:
<1/8 Wave
Packaging Details:
Transparent clean box
Supply Ability:
10000pcs per week
Highlight:

Farday Rotator Magneto Optical Crystal

,

Terbium Gallium Garnet Single Crystal

,

Polish Magneto Optical Crystal

Product Description

Crystro Magneto Optical Crystal Terbium Gallium Garnet For Farday Rotator



Description:



The optical properties, Faraday effect and Verdet constant of ceramic terbium gallium garnet (TGG) have been measured at 1064 nm, and were found to be similar to those of single crystal TGG at room temperature. Observed optical characteristics, laser induced bulk-damage threshold and optical scattering properties of ceramic TGG were compared with those of single crystal TGG. Ceramic TGG is a promising Faraday material for high-average-power YAG lasers, Yb fiber lasers and high-peak power glass lasers for inertial fusion energy drivers.



Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High thermal conductivity (7.4W m-1K-1).
  • High laser damage threshold (>1GW/cm2).
  • Thermal conductivity is an order of magnitude greater than typical glass.
  • Optical losses are lower for TGG than Tb-doped glasses



Applications:

  • Faraday Rotator;

  • Optical Isolator.

  • Magnetic sensor



Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm





CRYSTRO supply TGG crystal with:



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
