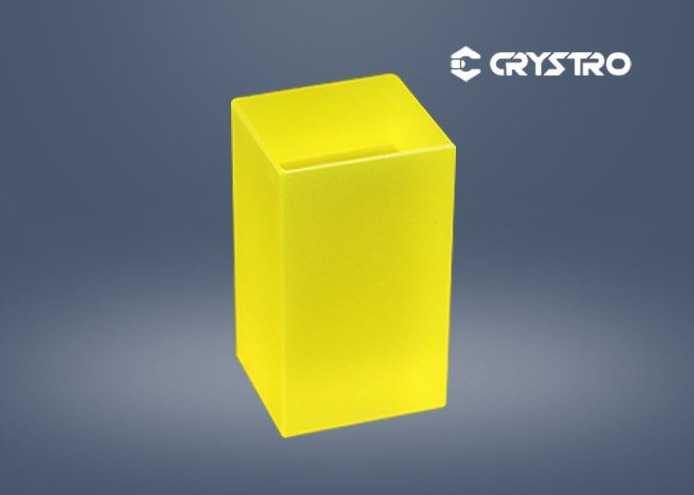

Crystro Cerium Doped Gadolinium Aluminium Ce Gallium Garnet GAGG Single Crystal

Name: Crystro Cerium Doped Gadolinium Aluminium Ce Gallium Garnet GAGG Single Crystal
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR210628-05
Price: 110.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR210628-05
MOQ:	1pc
Price:	USD 20-200/pc
Delivery Time:	4-5 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,RoHS,Reach

Item Name:

Cerium Doped Gadolinium Aluminium Garnet

Orientation Tolerance:

<0.5°

Size Tolerance:

±0.05mm

Paralle:

10‘’

Perpendicular:

5’

Surface Quality:

10/5

Clear Aperture:

>90%

Charmfer:

<0.2x45°

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

Cerium Doped Gadolinium Aluminium Scintilation Crystals

GAGG Single Scintilation Crystals

Ce Gallium Garnet Single Crystal

Product Description

Crystro Cerium Doped Gadolinium Aluminium Ce:Gallium Garnet GAGG Single Crystal

GAGG:Ce (Cerium-doped Gadolinium Aluminium Gallium Garnet) is a Single crystal scintillators with high density and high gamma-ray absorption coefficient coupled with photodetectors are commonly used for detection of high-energy photons and particles. There is continuous demand for new scintillator materials for such application as: X-ray computed tomography (CT), positron emission tomography (PET) and other medical imaging techniques, as well as in high energy and nuclear physics.

Main Advantages:

1. Relatively bright – emitting >50,000 photons/MeV

2. Good absorbers with good stopping powers - density 6.63 g/cm³

3. Broadly emitting with a 540nm peak

4. Good Energy resolution

Main Applications:

γ-ray detection
X-ray medical imaging
Nuclear physics
Nuclear radiation detection
PET

Main Properties:

Properties	Units
Wavelength (Max. Emission)	520 nm
Wavelength Range	475 - 800 nm
Decay Time	50 - 150 ns
Light Yield	40 - 60 photons/keV
Refractive Index	1.9 @540nm
Density	6.63 g/cm³
Atomic Number (Effective)	54.4
Melting Point	1850 ºC
Thermal Expansion Coeff.	TBA x 10‾⁶ C⁻¹
Hardness	8 Mhos

Specifications:

Chamfer	<0.2×45°
Orientation Tolerance	< 0.5°
Thickness/Diameter Tolerance	±0.05 mm
Clear Aperture	>90%
Wavefront Distortion	dia 70mm
Surface Quality	10/5 (Scratch/Dig)
Parallel	10″
Perpendicular	5′

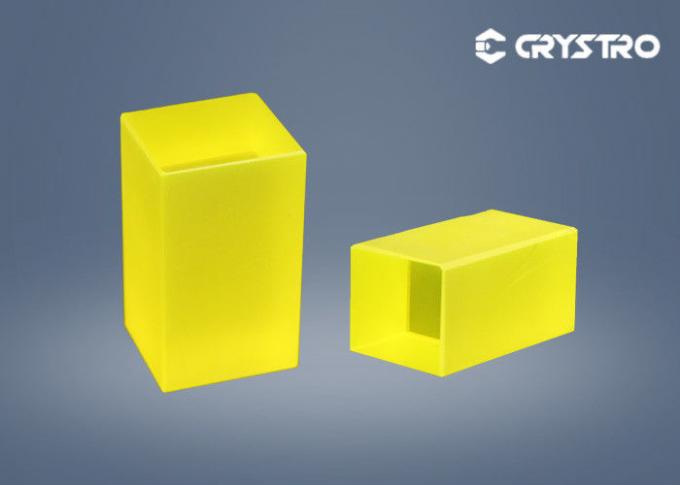

Crystro Cerium Doped Gadolinium Aluminium Ce Gallium Garnet GAGG Single Crystal 0
