Piezoelectric Effect Crystals
Created with Pixso. Cylindricle Type LGS Single Crystal Named CRMQ Can Replace BBO For Q switch

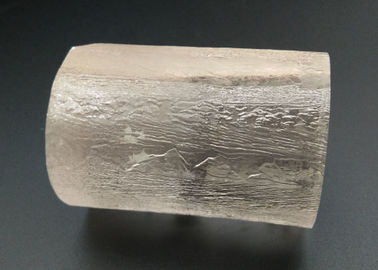

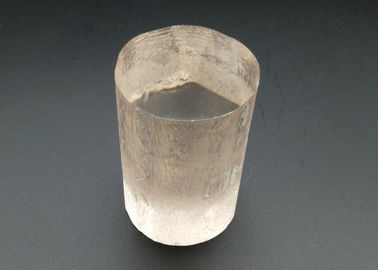

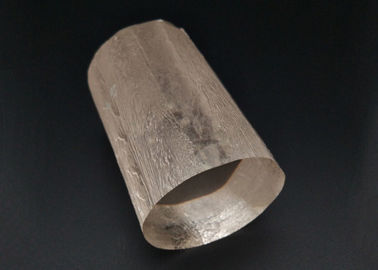

Cylindricle Type LGS Single Crystal Named CRMQ Can Replace BBO For Q switch

Brand Name: Crystro
Model Number: CR20200107-5
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS
Polish:
10/5
Type:
Rod/Cylindricle
Diameter:
50mm
Length:
50mm
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

pockels effect crystals

,

bbo pockels cell

,

Cylindrical Type LGS Single Crystal

Product Description

Piezoelectric Langasite La3Ga5SiO14 (LGS) Crystal Can be Customized



Langasite crystal (La3Ga5SiO14,LGS), belonging to the space group P321, point group 32, has been reported to be promising new piezoelectric materials for fabrication of surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices. The devices made of langasite crystal could be used at a high temperature up to 900℃ because of its high thermal stability.



Lanthanum gallium silicate ( La2Ga5SiO14 ) is a phenomenal invention. Though langasite was initially developed as a laser crystal, it revealed a remarkable combination of piezoelectric qualities, which opened up new opportunities to use the LGS crystal in radio frequency devices. The main applications of langasite crystals now is SAW filters and SAW resonators. Experts agree that LGS is the best choice for high-efficiency broad band frequency devices because it possesses exceptional frequency-temperature characteristics, a very high index of electromechanical coupling and un unparalleled Q-factor.





Main Properties:



Crystal Structure rigonal system, group 33 a= 8.1783 c = 5.1014
Growth Method Czochralski
Hardness 6.6 Moh's
Density 5.754 g/cm3
Melt Point 1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC) α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW 2400 ( m/sec )
Frequency constant, BAW 1380 ( kHz/mm )
Piezoelectric coupling K2 (%) BAW: 2.21 SAW: 0.3
Inclusions N0
