Scintilation Crystals
Created with Pixso. LED Scintilation Crystals Lu3Al5O12 510mm Emission Peak Fast Decay Time

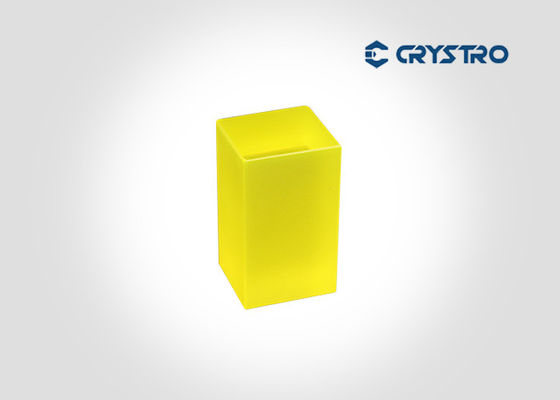

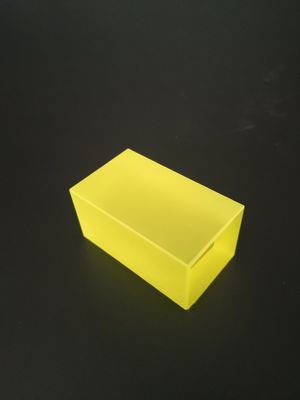

LED Scintilation Crystals Lu3Al5O12 510mm Emission Peak Fast Decay Time

Brand Name: Crystro
Model Number: Ce:LuYAG
MOQ: 1pc
Detail Information
Model Number:
Ce:LuAG Crystal
Emission Peak (nm):
510
Decay Time(ns):
80
Structure:
Ia3d
Symmetry:
Cubic
Chemical Composition:
Lu3Al5O12
Packaging Details:
Master carton with shockproof pearl cotton
Highlight:

medical imaging crystals

,

gagg crystals

,

Scintilation Crystals 510mm

Product Description

Fast decay time Scintillation Detector LuAG:Ce crystal LED



Cerium doped yttrium-aluminum garnet (Ce:LuAG) is a well established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.

The Ce:LuAG is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.



Main Properties



Property Ce:LuAG
Chemical composition Lu3Al5O12
Melting (℃) 1970℃
Symmetry Cubic
Structure Ia3d
Cell parameters(Å) 11.914
Hardness 8.5
Density(g/cm3) 6.73
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84



Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%
Zeff 60.6



Crystro can offer:



Polishing Specification for Laser Grade
Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions dia 95 mm
