Single Crystal Substrates
Created with Pixso. Co:Spinel Optical Substrate

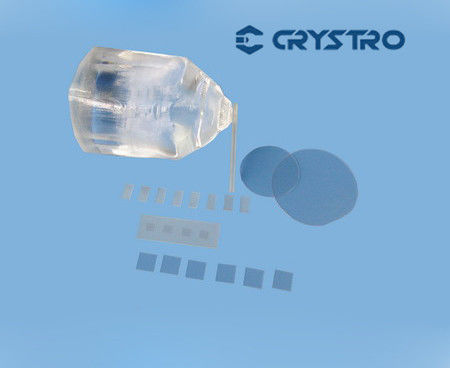

Co:Spinel Optical Substrate

Brand Name: Crystro
Model Number: CR20200309-2
MOQ: 1pc
Price: Negotiable
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS
Brand:
CRYSTRO
Diameter:
As You Required
Thickness:
As You Required
Surface Finish:
< 10A
Type:
Round,Square,Flats
Orientation:
<100>,<111>
Polishing:
Double Side Polished
Size Tolerance:
+/-0.05mm
Packaging Details:
Carton Package
Supply Ability:
1000pcs/month
Highlight:

single crystal elements

,

laalo3 substrate

,

Polished Spinel Optical Substrate

Product Description

Co2 :MgAl2O4 ( Co2+:Spinel) Crystals For Sale



Co2+:MgAl2O4 (Co2+:Spinel or Co:MALO) crystals is a new material for passive Q-switching in lasers emitting from 1.2 to 1.6 µm, in particular, for eye-safe 1.54 µm Er:glass laser, but also works at 1.44 µm and 1.34 µm wavelengths. High absorption cross section (3.5 × 10-19cm2) permits Q-switching of Er:glass laser without intracavity focusing both with flash-lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10. Hangzhou Shalom EO offer the high quality Co:Spinel crystals materials with high optical quality and uniform distribution of Co2+ in laser grade polishing and coatings.



● Suitable for 1.54μm eye-safe lasers
● High absorption section and no excited state absorption



Main Properties:



Specifications
Material Co2+:MgAl2O4
Orentation <111>+/-0.5°
Doping rate of Co2+ 0.05-0.3 atm%
Optical density 0.1-0.9
Absorption coefficient 1.0cm-1-7cm-1
Transmittance 30%-99%
Absorption section 3.5 x 10-19cm2
Thickness/Diameter tolerance +/-0.1mm
Parallelism 10″
Perpendicular 5′
Surface quality 10/5
Wavefront distortion Lambda/8 @ 632nm
Flatness Lambda/8 @ 632nm
Aperture >90%
Chamfer 0.1 x 45°
HR Coating <=0.2%(@ 1533nm)
Damage threshold >500MW/cm2
