Single Crystal Substrates
Created with Pixso. Low Optical Losses 7.09g/Cm3 Liquid Epitaxy Film SGGG Gd3Ga5O12

Low Optical Losses 7.09g/Cm3 Liquid Epitaxy Film SGGG Gd3Ga5O12

Brand Name: Crystro
Model Number: CR200902-04
MOQ: 1pc
Delivery Time: 4-5weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC/ROHS/REACH
Material:
Substituted GGG
Orientation:
<111> <100>±2°
Density:
7.09g/cm3
Melting Point:
1730°
Roughness:
≤1nm
Cutting:
Customized (1°-45°)
Application:
Epitaxial Growth Of YIG,BIG Film
Package:
100 Degree Super Clean Pack

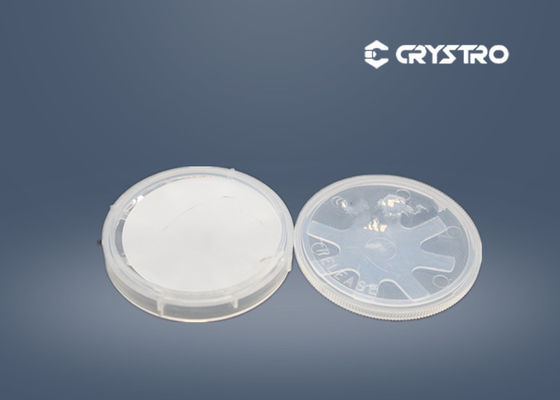

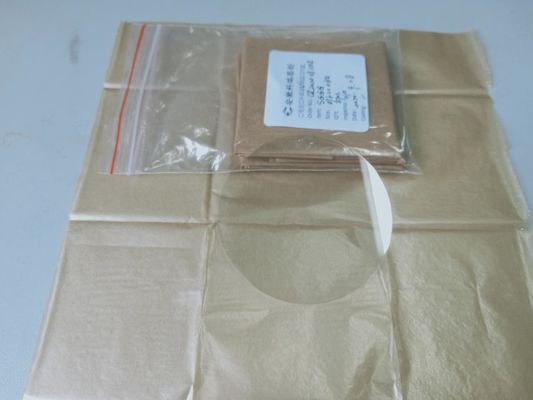

Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

SGGG Gd3Ga5O12

,

7.09g/cm3 Gd3Ga5O12

,

7.09g/cm3 SGGG

Product Description

Low Optical Losses 7.09g/Cm3 Liquid Epitaxy Film SGGG Gd3Ga5O12



Substituted Gadolinium Gallium Garnet (SGGG, Gd3Ga5O12) is used as substrates for liquid epitaxy.GGG substrtae is dedicated substrates for magneto-optical film.In the optical communication devices,require a lot of using 1.3um and 1.5um optical isolator,it's core compoment is the YIG and BIG film been placed in magnetic field. SGGG single crystal substrates of different tangential,can achieve the best lattice match with this magneto optical material,thus ensuring the YIG,BIG film epitaxial growth be successful.



Main Advantages:

  • Orientation,<111> <100>
  • High thermal conductivity (7.4W m-1K-1).
  • Low optical losses (<0.1%/cm)
  • High Damage threshold(>1GW/cm2)
  • Big diameter,up to 4inch



CRYSTRO supply SGGG crystal with:

Orientation  [111] within ±15 arc min
Wave Front Distortion  <1/4 wave@632
Diameter Tolerance  ±0.05mm
Length Tolerance  ±0.05mm
Chamfer  0.10mm@45º
Flatness  <1/10 wave at 633nm
Parallelism  < 30 arc Seconds
Perpendicularity  < 15 arc min
Surface Quality  10/5 Scratch/Dig
Clear Apereture  >90%
Large Dimensions of Crystals

 diameter up to 4inch



Our Company:



Anhui Crystro Crystal Materials Co., Ltd. is specialized in research and development of crystal science and technology, our
business scope mainly concentrated in high-tech crystal materials research and development, manufacture and multidisciplinary solutions. The service industries include: communications, aerospace, automobile, medical, beauty and other industries.
