Piezoelectric Effect Crystals
Created with Pixso. Optical 5200nm Lithium Niobate LiNbO3 Wafer For Frequency Doublers

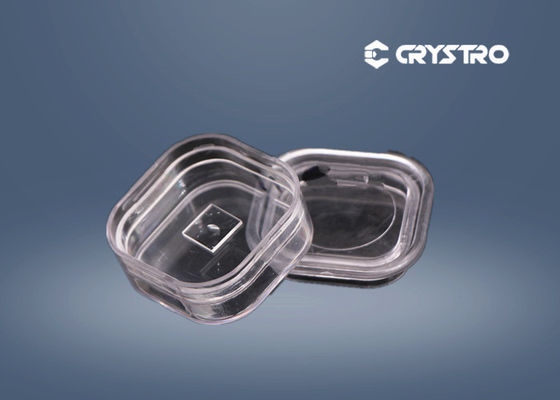

Optical 5200nm Lithium Niobate LiNbO3 Wafer For Frequency Doublers

Brand Name: Crystro
Model Number: CR210219-1
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 3-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Lithium Niobate (LiNbO3) Crystal Substrate Wafer
Density:
4.64g/cm3
Transparency Range:
420-5200nm
Absorption Coefficient:
~0.1%/cm @1064nm
Refractive Indices:
Ne=2.156, No=2.232@1064nm
Dimension Tolerance:
±0.05mm
Wedge Angle Tolerance:
±0.1°
Packing:
Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

5200nm LiNbO3 wafer

,

optical Lithium Niobate wafer

,

5200nm Lithium Niobate wafer

Product Description

Lithium Niobate (LiNbO3) Crystal Substrate Wafer



LiNbO3 (Lithium niobate, LN) crystal is a negative uniaxial crystal and one of the most thoroughly characterized optical materials.

With its large electro-optic coefficients, wide optical transparency window, and availability of high optical quality crystals, LN (lithium niobate) crystal is often the material of choice for optical modulation and Q-switch at near-infrared and infrared wavelengths. For electro-optic modulators (EOM) the crystal can be z-cut with zero residual birefringence along the direction of light propagation or x-cut with non-zero residual birefringence and the maximized effective electro-optic coefficient. For Q-switch the crystal is typically z-cut with zero residual birefringence and an electric field is applied transverse to the direction of light propagation. The piezoelectric ringing in LN is a disadvantage at high repetition frequency, but can be overcome to some extent with proper piezoelectrically damped designs.





Basic Properties of LiNbO3



Crystal Sturucture  Trigonal, Space group R3c, Point group 3m
Melting Point  1253℃
Mohs Hardness  5
Density  4.64g/cm3
Deliquescence  None
Optical Homogeneity  ~5x10-5/cm
Transparency Range  420-5200nm
Absorption Coefficient  ~0.1%/cm @1064nm
Refractive Indices at 1064nm  ne=2.146, no=2.220@1300nm                               ne=2.156, no=2.232@1064nm                             ne=2.203, no=2.286@632.8nm
Thermal Expansion Coefficients (at 25℃ )  //a,2.0x10-6/K                                                         //a,2.2x10-6/K
Thermal Conductivity Coefficients  38 W/m/K at 25℃
Thermal Optical Coefficients  dno/dT=-0.874 x 10-6/K at 1.4μm               dne/dT=39.073 x 10-6/K at 1.4μm
The Sellmeier Equations (λ in μm)  no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ  ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2



Typical Specifications:



Specifications Boule Wafer
Diameter Φ3'' Φ4'' Φ3'' Φ4''
Length or Thickness (mm) ≤100 ≤50 0.35-0.5
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut
Ref.Flat Orientation X,Y
Ref.Flat Length 22±2mm 32±2mm 22±2mm 32±2mm
Front Side polishing / Mirror polished 5-15 Å
Back Side Lapping / 0.3-1.0μm
Flatness (μm) / ≤15
Bow (μm) / ≤25



Crystro can offer other size and specification of wafers upon request.



Applications:
LiNbO3 Crystal is widely used as frequency doublers for wavelength > 1μm and optical parametric oscillators (OPO) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices. Due to its large Electro-Optic (E-O) and Acousto-Optic (A-O) coefficients, LiNbO3 crystal is the most popular material for Pockel Cells, Q-switches and phase modulators, waveguide substrate and surface acoustic wave (SAW) wafers, etc.



Crystro provides:

  • LiNbO3 wedges used for fiber optical isolators and circulators.

  • Reliable delivery

  • Strict quality control

  • Technical support

  • Very competitive prices
