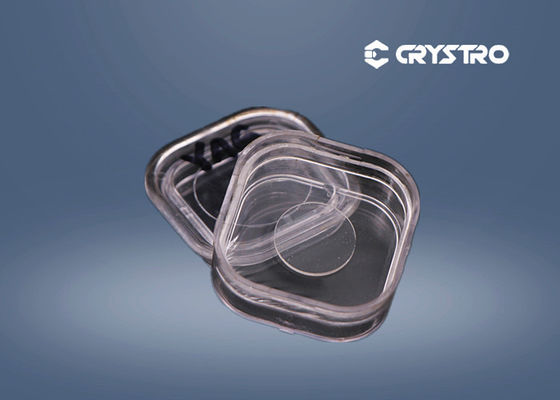

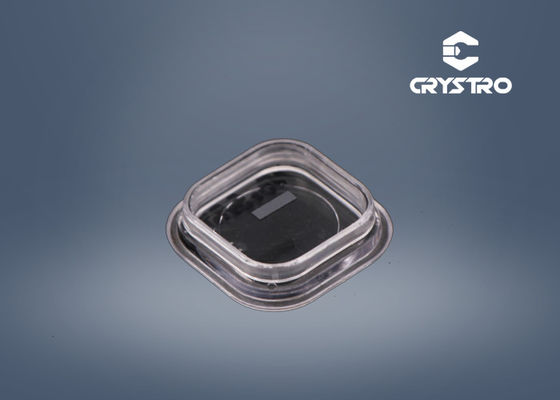

4.64g/Cm3 Piezoelectric Lithium Niobate Photonics For Optical Waveguides

Name: 4.64g/Cm3 Piezoelectric Lithium Niobate Photonics For Optical Waveguides
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR210219-2
Price: 110.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR210219-2
MOQ:	1pc
Price:	USD 20~200/pc
Delivery Time:	2-5 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/COC

Material:

Piezoelectric Crystal Lithium Niobate LN LiNbO3

Melting Point:

1253℃

Mohs Hardness:

Density:

4.64g/cm3

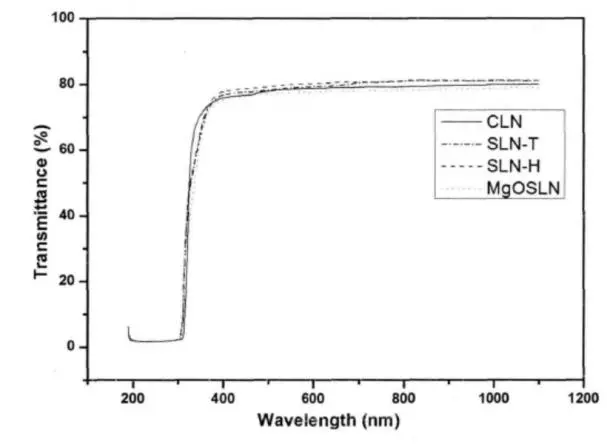

Transparency Range:

420-5200nm

Absorption Coefficient:

~0.1%/cm @1064nm

Refractive Indices:

Ne=2.156, No=2.232@1064nm

Flatness:

λ/4 @632.8nm

Packaging Details:

Transparent clean box

Supply Ability:

2000pcs per month

Highlight:

Piezoelectric lithium niobate photonics

4.64g/cm3 lithium niobate photonics

4.64g/cm3 piezoelectric crystals

Product Description

Piezoelectric Crystal Lithium niobate LN LiNbO3

Lithium niobate – (LN, LiNbO3) crystal is an important material for optical waveguides, mobile phones, piezoelectric sensors, optical modulators and various other linear and non-linear optical applications. Many technologies are based on this material which has unique piezo-electric, optical and photoelastic properties while exhibiting mechanical and chemical stability.The combination of excellent electro-optical, acousto-optical and non linear optical properties make an attractive host material for application in integrated optics

With its large electro-optic coefficients, wide optical transparency window, and availability of high optical quality crystals, LN (lithium niobate) crystal is often the material of choice for optical modulation and Q-switch at near-infrared and infrared wavelengths.

Nonlinear Optical Properties:

NLO Coefficients	d₃₃ = 34.4 pm/V d₃₁ = d₁₅ = 5.95 pm/V d₂₂ = 3.07 pm/V
Effective NLO coefficients	d_eff =5.7 pm/V for frequency doubling 1300 nm; d_eff =5.3 pm/V for OPO pumped at 1064 nm; d_eff =17.6 pm/V for quasi-phase-matched structure.
Electro-Optic Coefficients	γT₃₃ = 32 pm/V, γs₃₃ = 31 pm/V, γT₃₁ = 10 pm/V, γs₃₁ = 8.6 pm/V, γT₂₂ = 6.8 pm/V, γs₂₂ = 3.4 pm/V,
Photorefractive Damage Threshold	50 MW/cm2 (10 ns, 1064 nm)
Surface Damage Threshold	300 MW/cm2 (10 ns, 1064 nm)

Specifications of LN EO components:

Wavefront Distortion:	Less than λ/8 @ 633 nm
Dimension Tolerance:	(W+/-0.1 mm) x (H+/-0.1 mm) x (L+0.5/-0.1 mm)
Clear Aperture:	> 90% central area
Flatness:	λ/8 @ 633 nm
Surface Quality:	Scratch/Dig 10/5 per MIL-O-13830A
Parallelism:	better than 20 arc seconds
Perpendicularity:	5 arc minutes
Angle Tolerance:	Δθ < 0.5o, Δφ < 0.5o

Our Advantages:

High consistent

High transmission range

unique electro-optical, piezoelectric and nonlinear properties

excellent mechanical and chemical stability

low absorption loss, < 0.1 %/cm @ 1064 nm
