Pockels Cell Q Switch
Created with Pixso. SGS Single Crystal BBO Pockels Cells UV Transmission Low Acoustic Noise

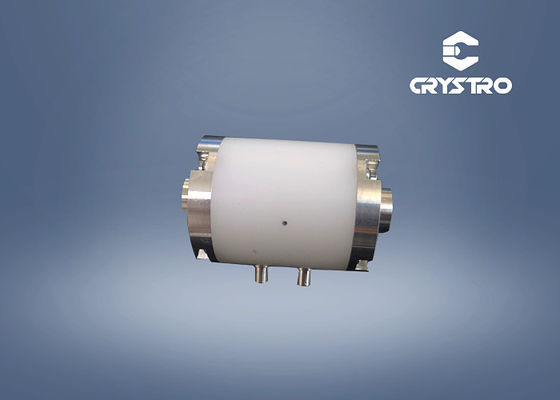

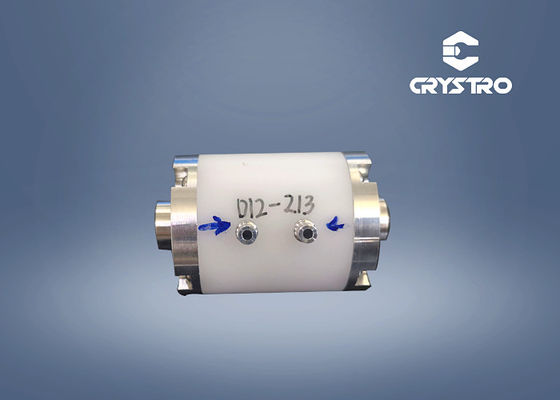

SGS Single Crystal BBO Pockels Cells UV Transmission Low Acoustic Noise

Brand Name: Crystro
Model Number: CR210224-01
MOQ: 1pc
Price: USD 50-500/pc
Delivery Time: 1-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Material:
High Power BBO Pockels Cells
Type:
Q-Switch
PC Size:
Diameter 20mm X 35mm
Crystal Size:
2.5 X 2.5 X 25mm
Crystal Quatity:
Single Crystal BBO
COATINGS::
AR/AR @ 1064nm
Extinction Raito:
>1000:1
Capacitance:
<3pF
Packaging Details:
As customers' requirement
Supply Ability:
1000pcs per month
Highlight:

SGS BBO Pockels Cells

,

Single Crystal BBO Pockels Cells

,

UV Transmission bbo pockels cell

Product Description

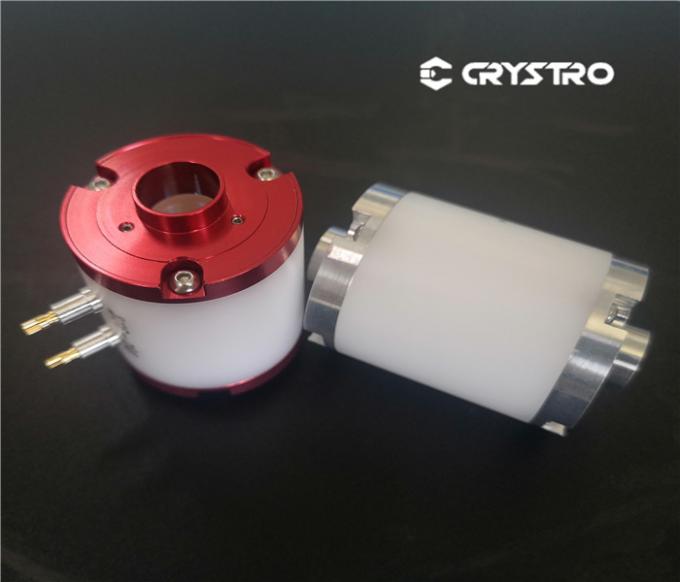

High Power BBO Pockels Cells



BBO is one of the electro-optic material choices for high average power E-O Q Switch applications. BBO has significant advantages over other materials in terms of laser power handling abilities, temperature stability, and substantial freedom from piezoelectric ringing. Because it relies on the electro optic effect, switching time - aided by the low capacitance of the E-O Q Switch is very fast. The wide transparency range of BBO allows it to be used in diverse applications.

E-O Q Switch of EOQ series are transverse field devices. Low electro-optical coefficient of BBO results in high operating voltages. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length. As a result, a smaller aperture device has lower quarter-wave voltage. However, even for 3mm aperture devices quarter-wave voltage is as high as 3.4KV@1064nm. Double crystal design is employed in order to reduce required voltages and allowing operation in half-wave mode with fast switching times.

As a result of its excellent properties BBO crystal has a number of advantages for different applications, like NOPA with femtosecond ( fs ) pulses, harmonics generation (up to fifth) of Nd:YAG and Nd:YLF lasers, frequency doubling or tripling of femtosecond Ti:Sapphire and dye lasers, OPO at Type I and Type II phase-matching, EO modulation, EO switching for Pockels cells and many other kinds of applications.





Our Advantages:

· High Repetition Rate
· High peak power damage resistance
· Low absorption
· UV Transmission
· Low Acoustic Noise



Specifications Description
Model Number EOQ-103
Aperture Diameter 2.5
Quarter-Wave Voltage@ 1064 nm 3.4KV
Optical Transmission >98%
Damage Threshold > 500 MW / cm2 @1064nm, 10ns
Wavefront Distortion@ 1064 nm < λ/8
Typical Capacitance < 3pf
Outline dimension, mm φ25.4×44
