Single Crystal Substrates
Created with Pixso. High Lattice Constant 12.497A Gd3Ga5O12 GGG Gallium Gadolinium Garnet Wafer

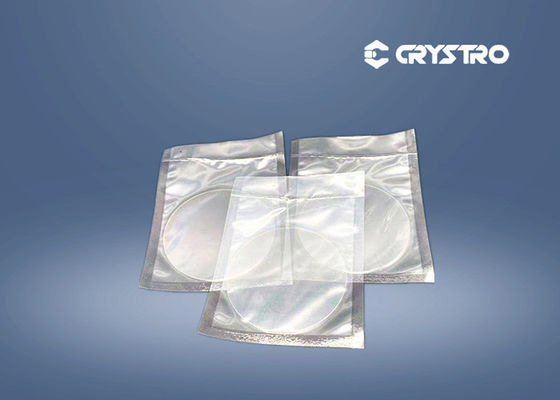

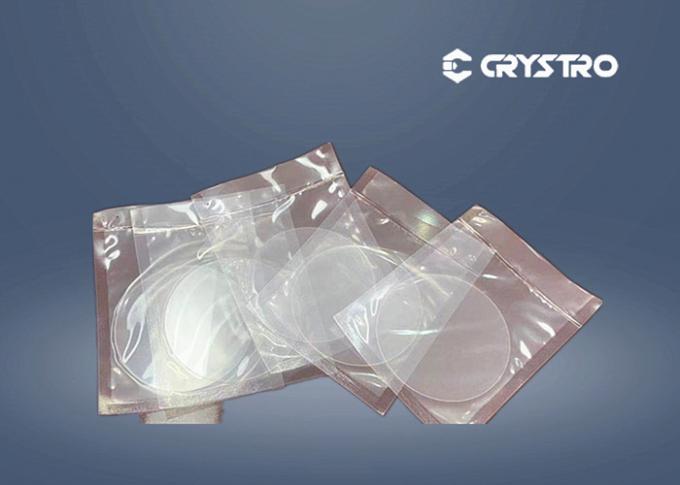

High Lattice Constant 12.497A Gd3Ga5O12 GGG Gallium Gadolinium Garnet Wafer

Brand Name: Crystro
Model Number: CR210508-01
MOQ: 1pc
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/ROHS
Material:
High Lattice Constant 12.497A Substituted GGG Wafer
Orientation:
(111)±0.2°
Lattice Constant:
12.497A
After-sales Service:
Video Technical Support, Online Support
Packing:
Vaccum Packing,Transparent Box
Origin:
China
Growth Method:
Czochralski
Chemical Formular:
Substituted GGG
Packaging Details:
Transparent clean box
Supply Ability:
5000pcs per month
Highlight:

12.497A gd3ga5o12 Wafer

,

Gd3Ga5O12 gallium gadolinium garnet

,

GGG Gallium Gadolinium Garnet

Product Description

High Lattice Constant 12.497A Substituted GGG Wafer



Substituted Gallium Gadolinium Garnet (Gd3Ga5O12 or GGG) single crystal subatrates has higer lattice constant comparing with GGG crystal.

It's used as substrates for liquid epitaxy growth of YIG or BIG film.

GGG substrates is dedicated substrates for magneto optical film.

GGG single crystal substrates of different tangential,which can achieve the best lattice match with this magento-optical material,thus ensuring the YIG,BIG film epitaxial growth be successful.It has good physical and mechanical properties and chemical stability.



Crystro's GGG has low optical lossed(<0.1%/cm),high thermal conductivity(7.4W m-1K-1),High laser damage threshold(>1GW/cm2)



CRYSTRO offers:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/4 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%
Large Dimensions of Crystals 2.8-76 mm in diameter





Compare GGG with SGGG:



Material GGG SGGG
Chemical Formular Gd3Ga5O12 Substituted GGG
Lattice Constant 12.383A 12.497A
Growth Method Czochralski Czochralski
Density 7.13g/cm3 7.09g/cm3
Mohs Hardness 8 7.5
Melting Point 1725℃ 1730℃
Refractive Index 1.954 at 1064nm 1.954 at 1064nm



document:



GGG SGGG NGG Crystal.pdf



Crystro has perfect automatic production machine, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG ,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG crystals.
We also established a crystal research center and developed different kinds of crystals. Keep providing technical support and training for new applications and product development staffs.
