| Brand Name: | Crystro |
| Model Number: | CR210426-02 |
| MOQ: | 1pc |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |

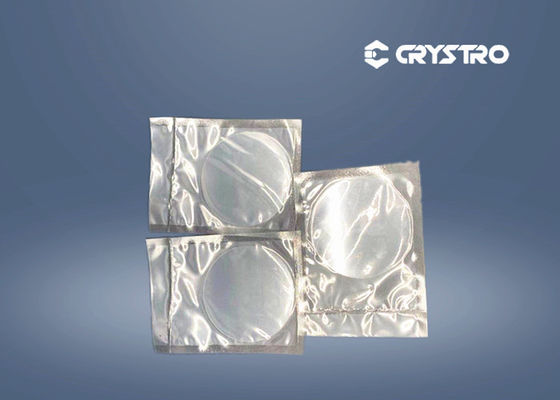

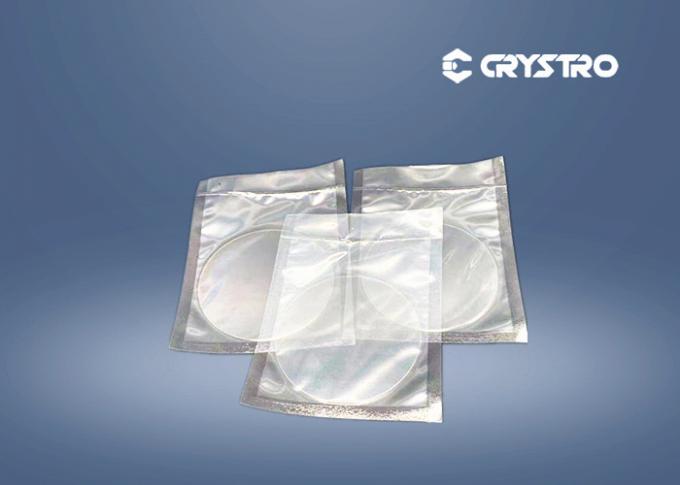

<111> Orientation Gallium Gadolinium Garnet Single Crystal Substrates
GGG single crystal substrates of different tangential,which can achieve the best lattice match with this magento-optical material,thus ensuring the YIG,BIG film epitaxial growth be successful.It has good physical and mechanical properties and chemical stability.
GGG is also substrate material for microwave devices.
In the optical communication devices,require a lot of using 1.3u and 1.5u optical isolator,which core component is the YIG or BIG film been placed in a magnetic field.
| Orientation | [111] within ±15 arc min |
| Wave Front Distortion | <1/4 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Large Dimensions of Crystals | 2.8-76 mm in diameter |
Main Properties:
| Chemical Formula | Gd3Ga5O12 |
| Lattic Parameter | a=12.376Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
document:
Crystro has perfect automatic production machine, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG ,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG crystals.
We also established a crystal research center and developed different kinds of crystals. Keep providing technical support and training for new applications and product development staffs.
Video
Video
Video
Video
Video
Video
Video
|
