Custom Gd3Ga5O12 Single Crystalline Substrates For Microwave Devices

Name: Custom Gd3Ga5O12 Single Crystalline Substrates For Microwave Devices
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR210508-03
Price: 110.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR210508-03
MOQ:	1pc
Delivery Time:	2-4weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/ROHS

Material:

Custom Gd3Ga5O12 Single Crystalline Substrates

Lattice Constant:

12.383A

Density:

7.13g/cm3

Warranty::

1 Year

Package:

Vaccum Packing

Refractive Index:

1.954 At 1064nm

Optical Loss:

<0.1%/cm

Thermal Conductivity:

7.4W M-1k-1

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

single crystalline Substrates

Gd3Ga5O12 Single Crystalline

Gd3Ga5O12 crystal substrates

Product Description

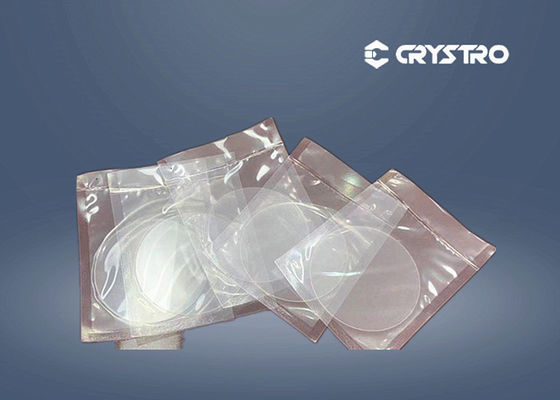

Custom Gd3Ga5O12 Single Crystalline Substrates

GGG is also substrate material for microwave devices.
In the optical communication devices,require a lot of using 1.3u and 1.5u optical isolator,which core component is the YIG or BIG film been placed in a magnetic field.
GGG has been successfully applied in the magnetic refrigeration industry in the temperature zone below 20 k for market HeII flow and helium-nitrogen liquefaction pre-stage refrigeration.

Crystro's GGG has low optical lossed(<0.1%/cm),high thermal conductivity(7.4W m-1K-1),High laser damage threshold(>1GW/cm2)

CRYSTRO offers:

Size	Max 4inch dia
Thickness	0.5mm, 1.0mm
Polishing	Single or double side
Orientation	<111>,<100> ±2°
Edge orientation accuracy	<2°
Edge Cutting	custom
Roughness	<0.5nm

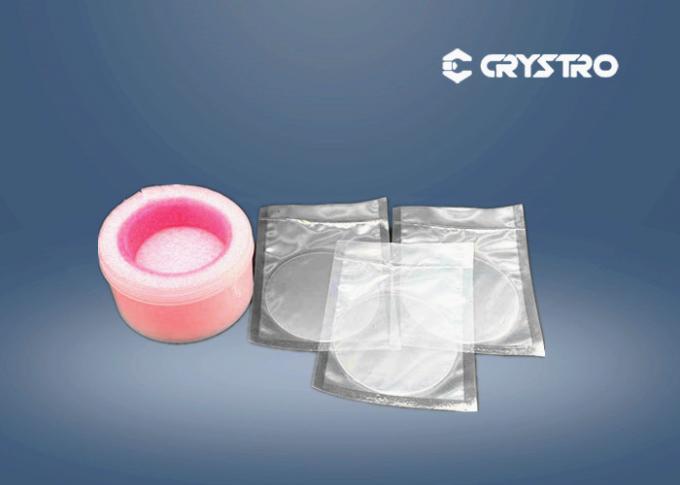

Package	thousand grade clean room,vaccum bags

Orientation	[111] within ±15 arc min
Wave Front Distortion	<1/4 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 15 arc min
Surface Quality	10/5 Scratch/Dig
Clear Apereture	>90%
Large Dimensions of Crystals	2.8-76 mm in diameter

Compare GGG with SGGG:

Material	GGG	SGGG
Chemical Formular	Gd3Ga5O12	Substituted GGG
Lattice Constant	12.383A	12.497A
Growth Method	Czochralski	Czochralski
Density	7.13g/cm3	7.09g/cm3
Mohs Hardness	8	7.5
Melting Point	1725℃	1730℃
Refractive Index	1.954 at 1064nm	1.954 at 1064nm

document:

GGG SGGG NGG Crystal.pdf

Crystro has perfect automatic production machine, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG ,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG crystals.
We also established a crystal research center and developed different kinds of crystals. Keep providing technical support and training for new applications and product development staffs.
