Piezoelectric Effect Crystals
Created with Pixso. 4mm X 4mm X 50mm La3Ga5SiO14 LGS Single Crystal With Au Coating Bar

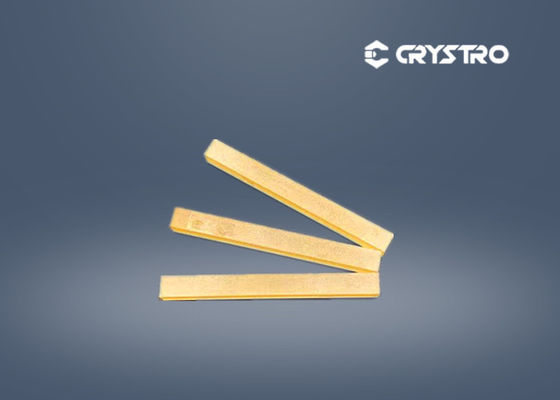

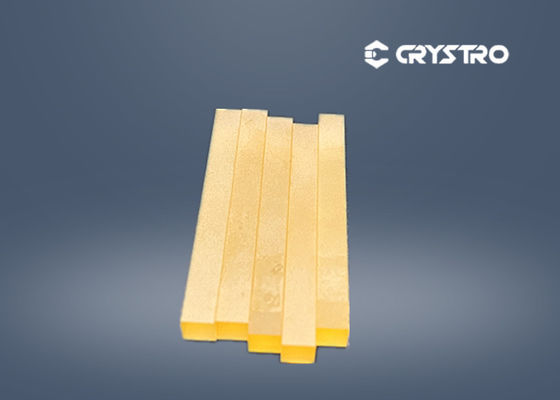

4mm X 4mm X 50mm La3Ga5SiO14 LGS Single Crystal With Au Coating Bar

Brand Name: Crystro
Model Number: CR210519-03
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS
Material:
La3Ga5SiO14
Size:
4x4x50mm
Type:
Crystal Bar
Coating:
Au Coating/AR Coating
Growth Method:
Czochralski
Melting Point:
1470℃
Warranty::
1 Year
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

Au Coating lgs crystal

,

La3Ga5SiO14 lgs crystal

,

La3Ga5SiO14 Single Crystal

Product Description

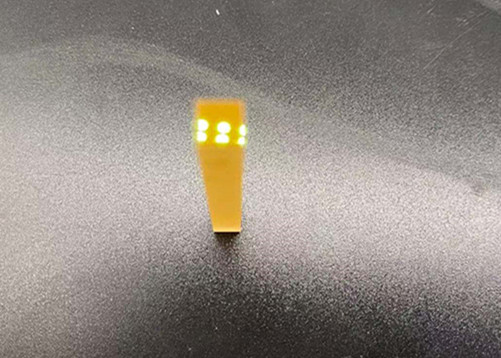

4mm x 4mm x 50mm LGS Single Crystal With Au Coating Bar​


Langasite crystal (La3Ga5SiO14,LGS), belonging to the space group P321, point group 32, has been reported to be promising new piezoelectric materials for fabrication of surface acoustic wave (SAW) and bulk acoustic wave (BAW) devices. The devices made of langasite crystal could be used at a high temperature up to 900℃ because of its high thermal stability.

Crystro's LGS wafer is grown by Czochralski method.Max diameter reach 60mm.Crytsro can custom size and cutting direction accordding to customer's needs,Our standard size including LGS Crystal bar: 3x3x20mm,4x4x50mm,5x5x45mm... LGS Crystal wafer: D2inchx0.5mm,D50x0.5mm,40x40x0.5mm...Piezoelectric crystal including LGS,LN,LT,BBO,DKDP are CRYSTRO's main prodcuts..




Main Properties:



Crystal Structure  rigonal system, group 33 a= 8.1783 c = 5.1014
Growth Method  Czochralski
Hardness  6.6 Moh's
Density  5.754 g/cm3
Melt Point  1470 o C ( phase transition point: N/A)
Thermal expansion (x10-6/ oC)  α 11: 5.10 α 33: 3.61
Acoustic velocity, SAW  2400 ( m/sec )
Frequency constant, BAW  1380 ( kHz/mm )
Piezoelectric coupling  K2 (%) BAW: 2.21 SAW: 0.3
Inclusions  N0


Features:


  • High damage threshold

  • Stable physical and chemical properties

  • High electromechanical coupling coefficient (3 times of quartz)

  • Low equivalent series resistance

  •

  • Applications:


  • electro-optic Q-switch

  • SAW device

  • BAW device

  • Sensor

  • High power high repetition rate all solid state laser

  • High and low temperature change laser


DOCUMENT:
LGS Cryatal.pdf
