| Brand Name: | Crystro |
| Model Number: | CR211011-01 |
| MOQ: | 1pc |
| Price: | USD 20~200/pc |
| Delivery Time: | 4-5 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |

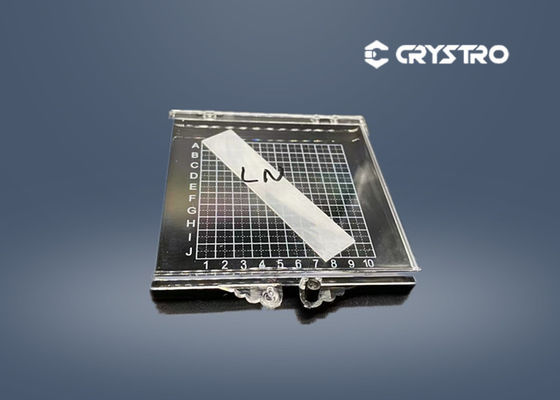

LiNbO3 and MgO-LiNbO3 Nonlinear Crystal
LiNbO3 (Lithium Niobate) crystal is widely used as frequency doublers for wavelength > 1mm and optical parametric oscillators (OPOs) pumped at 1064 nm. Due to its large electro-optic and acousto-optic coefficients.
MgO:LiNbO3 (Magnesium Oxide Doped Lithium Niobate) crystal has similar effective nonlinear coefficients to pure LiNbO3 and exhibits higher optical damage threshold.
Both pure LN and MgO doped LN (MgO:LN) crystals with gold coatings on side faces for electrodes are available
MgO doped LiNbO3 (MgO:LN) has similar linear optical properties to pure LiNbO3, but the photorefractive damage threshold is much higher.
Crystro's LiNbO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.Magneto-optical single crystals like GGG,SGGG,TGG,TSAG are our main products.
Crystro provides:
LiNbO3 Crystal Applications:
1. Pockels Cells
2. Q-switches
3. Phase modulators
4. Surface acoustic wave(SAW) wafers
Basic Properties of LiNbO3:
| Crystal Sturucture | Trigonal, Space group R3c, Point group 3m |
| Melting Point | 1253℃ |
| Mohs Hardness | 5 |
| Density | 4.64g/cm3 |
| Deliquescence | None |
| Optical Homogeneity | ~5x10-5/cm |
| Transparency Range | 420-5200nm |
| Absorption Coefficient | ~0.1%/cm @1064nm |
| Refractive Indices at 1064nm | ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm |
| Thermal Expansion Coefficients (at 25℃ ) | //a,2.0x10-6/K //a,2.2x10-6/K |
| Thermal Conductivity Coefficients | 38 W/m/K at 25℃ |
| Thermal Optical Coefficients | dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm |
| The Sellmeier Equations (λ in μm) | no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2 |
