Piezoelectric Effect Crystals
Created with Pixso. 0.5mm Thickness X Cut Lithium Niobate LiNbO3 Wafer

0.5mm Thickness X Cut Lithium Niobate LiNbO3 Wafer

Brand Name: Crystro
Model Number: CR211011-03
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
LiNbO3 Wafers X-cut 0.5mm Thickness Lithium Niobate Crystal
Surface Quality:
20/10
AR-Coating:
R<0.2% @1550nm±40nm
Diameter:
Up To 4inch
Thickness:
0.5mm/1mm
Origin:
China
Delivery:
1-4 Weeks
Packing:

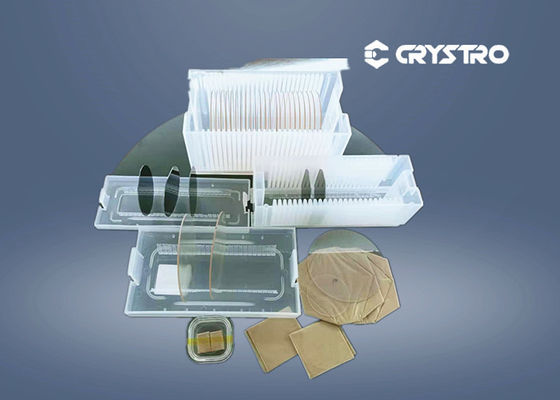

Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

0.5mm x cut lithium niobate

,

LiNbO3 x cut lithium niobate

,

0.5mm lithium niobate crystal

Product Description

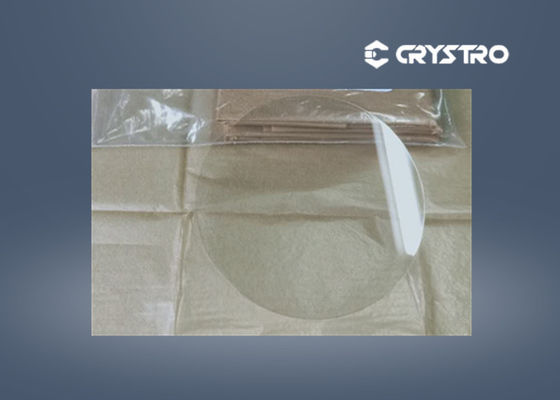

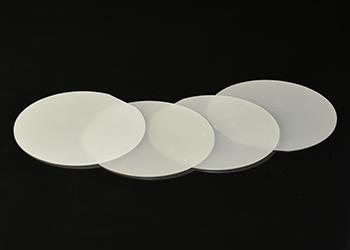

LiNbO3 Wafers X-cut 0.5mm Thickness Lithium Niobate Crystal



Lithium niobium crystal (LN)LiNbO3 is widely used in SAW filter, optical waveguide, photoelectricity modulator, frequency multiplication transducer and information storage as a functional crystal with excellent physical feature of anti high temperature and anti canker.

It has stable mechanical performance, and will appear different special feature after being doped differently.



LiNbO3 crystal combines low cost, good mechanical and physical properties as well as high optical homogeneity. Therefore, LiNbO3 wedges have been widely used in fiber isolators and circulators.



Anhui Crystro can offer LN wafers up to size Dia 4inch and 0.5mm Thickness.both sides polished as required.


The possible applications:



  • 1. EO Waveguide Phase Modulators
  • 2. EO Waveguide Amplitude Modulators
  • 3. Integrated Waveguide Photonics
  • 4. Wave Guide Lasers
  • 5. Polarizer for Optic Isolator
  • 6.Quasi-phase Matching for SHG and OPO



Basic Properties of LiNbO3

Crystal Sturucture  Trigonal, Space group R3c, Point group 3m
Melting Point  1253℃
Mohs Hardness  5
Density  4.64g/cm3
Deliquescence  None
Optical Homogeneity  ~5x10-5/cm
Transparency Range  420-5200nm
Absorption Coefficient  ~0.1%/cm @1064nm
Refractive Indices at 1064nm  ne=2.146, no=2.220@1300nm                               ne=2.156, no=2.232@1064nm                             ne=2.203, no=2.286@632.8nm
Thermal Expansion Coefficients (at 25℃ )  //a,2.0x10-6/K                                                         //a,2.2x10-6/K
Thermal Conductivity Coefficients  38 W/m/K at 25℃
Thermal Optical Coefficients  dno/dT=-0.874 x 10-6/K at 1.4μm               dne/dT=39.073 x 10-6/K at 1.4μm
The Sellmeier Equations (λ in μm)  no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ  ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2





Specifications of LiNbO3 wedges

Aperture  1.0 x1.0 mm2 to 4 x 4 mm2
Dimension Tolerance  ±0.05mm
Wedge Angle Tolerance  ±0.1°
Optical Axis Orientation  ±0.5°
Flatness  λ/4 @632.8nm
Surface Quality  20-10
AR-Coating  R<0.2% @1550nm±40nm
Standard Size  1.25mmx1.25mmx0.5mm with 13º or 15º wedge, phi=22.5º





LiNbO3 is also a good acousto-optic crystal and used for surface acoustic wave (SAW) wafer and A-O modulators. Crystro provides acoustic (SAW) grade LiNbO3 crystals in wafers, as-cut boules, finished components and custom fabricated elements.



Typical SAW Properties

Cut Type        SAW                   Velocity        Vs (m/s)    Electromechanical    Coupling Factor K2s(%)       Temperature               Coefficient of                Velocity            TCV (10-6/℃)     Temperature         Coefficient of                Delay            TCD (10-6/℃)
127.86 ° Y-X 3970 5.5 -60 78
Y-X 3485 4.3 -85 95



Typical Specifications

Specifications Boule Wafer
Diameter Φ3'' Φ4'' Φ3'' Φ4''
Length or Thickness (mm) ≤100 ≤50 0.35-0.5
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut
Ref.Flat Orientation X,Y
Ref.Flat Length 22±2mm 32±2mm 22±2mm 32±2mm
Front Side polishing / Mirror polished 5-15 Å
Back Side Lapping / 0.3-1.0μm
Flatness (μm) / ≤15
Bow (μm) / ≤25



Crystro can offer other size and specification of wafers upon request.
