| Material: | Piezoelectric Crystal Lithium Tantalate LT LiTaO3 Crystal Boule Manufacturer | Transparency Range: | 400 – 5000 Nm |
|---|---|---|---|
| Absorption Edge: | 270nm | Absorption Loss: | < 0.15 %/cm @ 1064 Nm |
| Refractive Indices: | No=2.176,ne=2.180(at 0.633 µm) No=2.131,ne=2.134(at 1.2 µm) | Orientation: | X-112°Y,36°Y,42°Y±0.5 |
| Curie Temperature: | 607℃ | Thermal Conductivity: | 8.78x 10-7 M2/sec |
| High Light: | Boule Piezoelectric Effect Crystals,LT Piezoelectric Effect Crystals,Piezoelectric lithium tantalate crystal |
||
Piezoelectric Crystal Lithium Tantalate LT LiTaO3 Crystal Boule Manufacturer
Lithium tantalate (LiTaO3) is a perovskite which possesses unique optical, piezoelectric and pyroelectric properties which make it valuable for nonlinear optics, passive infrared sensorssuch as motion detectors, terahertz generation and detection, surface acoustic waveapplications, cell phones and possibly pyroelectric nuclear fusion. Considerable information is available from commercial sources about this salt.
Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.
Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates

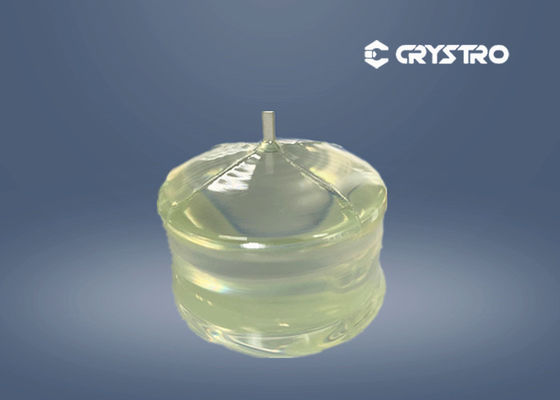

LiTaO3 crystal boule is grown by Czochralski method. Max diameter reach 4inch.
Crystro provides:
Basic Properties of LiTaO3:
| Crystal Structure | Trigonal, Space group R3c, Point group 3m |
| Cell Parameters | a=5.154Å,c=13.781Å |
| Melting Point | 1650℃ |
| Curie Temperature | 607℃ |
| Mohs Hardness | 5.5 |
| Density | 7.46g/cm3 |
| Dielectric Constants | ε11/ε0:51.7 |
| ε33/ε0:44.5 | |
| Elastic Stiffness Coefficients | CE11:2.33(×1011N/m2) |
| CE33:2.77(×1011N/m2) | |
| Piezoelectric Strain Constants | d22:2.4(×10-11C/N) |
| d33:0.8(×10-11C/N) | |
| Transmission range | 400-4500nm |
| Electro-optical coefficients | r33=30.4pm/V |
| Refractive index at 632.8nm | no=2.176,ne=2.180 |
Typical Specifications:
| Type | Boule | Wafer | ||
| Specifications | ||||
| Diameter | Φ3″ | Φ4″ | Φ3″ | Φ4″ |
| Length or Thickness | ≤100mm | ≤50mm | 0.35-0.5mm | |
| Orientation | 127.86°Y,64°Y,135°Y,X,Y,Z,and other cut | |||
| Ref. Flat Orientation | X,Y | |||
| Ref. Flat Length | 22±2mm | 2mm | 22±2mm | 32±2mm |
| Front Side Polishing | Mirror polished 5-15Å | |||
| Back Side Lapping | 0.3-1.0μm | |||
| Flatness(μm) | ≤15 | |||
| Bow(μm) | ≤25 | |||
Crystal orientations available: Z-cut, X-cut, Y-cut
Typical product sizes available
Bulk crystals:
up to 4 inch diameter and 50 mm thick
Crystal substrates / wafers (single side or double side polished)
10 x 10 x 0.5 mm
2 inch diameter x 0.5mm thick
4 inch diameter x 0.5mm thick
Note: Other sizes and coatings are available upon request
