Piezoelectric Effect Crystals
Created with Pixso. Lithium Tantalate LiTaO3 Nonlinear Optical Grade Piezoelectric Effect Crystals

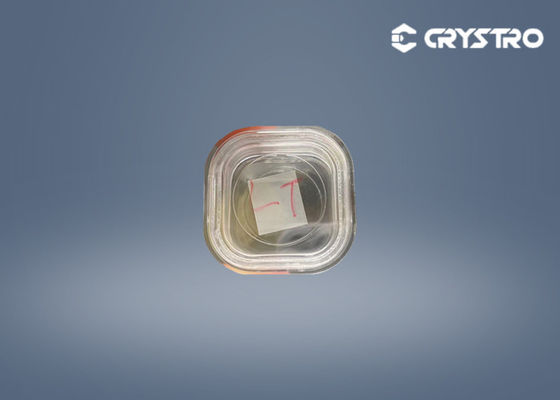

Lithium Tantalate LiTaO3 Nonlinear Optical Grade Piezoelectric Effect Crystals

Brand Name: Crystro
Model Number: CR211012-04
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Lithium Tantalate (LiTaO3) Nonlinear Optical Grade Crystal Wafer
Transparency Range:
400 – 5000 Nm
Absorption Edge:
270nm
Orientation:
X-112°Y,36°Y,42°Y±0.5
Flatness:
λ/8@632nm
Surface Quality:
20/10
Diameter:
Up To 4inch
Origin:
China
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

Nonlinear Piezoelectric Effect Crystals

,

LiTaO3 Piezoelectric Crystals

,

Nonlinear litao3 crystal

Product Description

Lithium tantalate (LiTaO3) Nonlinear Optical Grade Crystal Wafer





Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.



Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates

Crystro's LiTaO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.

Other optical single crystals like GGG,SGGG,TGG,TSAG are also available.



Crystro provides:



  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature




Typical Specifications:




Properties LiTaO3(LT)
Type of Material Single Crystal
Crystal Structure Trigonal,a = 5.154, c = 13.784Å
Melting Point 1650℃
Curie Temperature 607℃
Transmission Range 400 – 5000 nm
Absorption edge 270nm
Absorption loss < 0.15 %/cm @ 1064 nm
Refractive Index no=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density 7.45g/cm3
Thermal Conductivity 8.78x 10-7 m2/sec
Optical homogeneity ~10-5
Hardness (Mohs) 5
Elastic Coefficient CE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constant ε110 52.7
ε330 44.5
Solubility in Water insoluble in water
NLO Coefficients d33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficients r31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold 2 MW/cm2@532nm
Standard Diameter dia150x50mm





Note: Other sizes and coatings are available upon request.



Crystal orientations available: Z-cut, X-cut, Y-cut



Typical product sizes available

Bulk crystals:

up to 4 inch diameter and 50 mm thick



Crystal substrates / wafers (single side or double side polished)

10 x 10 x 0.5 mm
2 inch diameter x 0.5mm thick
4 inch diameter x 0.5mm thick





Lithium Tantalate LiTaO3 Nonlinear Optical Grade Piezoelectric Effect Crystals 0
