Fe LiTaO3 Nonlinear Optical Crystals For E-O Devices

Brand Name: Crystro
Model Number: CR2111230-01
MOQ: 1pc
Price: 20-200USD
Delivery Time: 1-4 WEEK
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
SGS/COC
Item:
LiTaO3 And Fe:LiTaO3 Nonlinear Optical Crystals
Sturucture:
Trigonal,a = 5.154, C = 13.784A
Melting Point:
1650℃
Density:
7.45g/cm3
Transparency Range:
400 – 5000 Nm
Absorption Edge:
270nm
Refractive Indices:
No=2.176,ne=2.180(at 0.633 µm) No=2.131,ne=2.134(at 1.2 µm)
Origin:
China
Packaging Details:
individual box
Supply Ability:
20000PCS/MONTH
Highlight:

LiTaO3 Nonlinear Optical Crystals

,

Trigonal Nonlinear Optical Crystals

,

Trigonal Fe LiTaO3 Crystals

Product Description

LiTaO3 And Fe:LiTaO3 Nonlinear Optical Crystals

LiTaO3 is an E-O crystal widely used for E-O devices, due to its good optical NLO and E-O properties, as well as high damage threshold. CRYSTRO supplies high quality LiTaO3 boules and wafers with the following specifications for standard applications. We can also offer other specifications upon request.



Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates





Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature


Basic Properties of LiTaO3:



Crystal Structure Trigonal, Space group R3c, Point group 3m
Cell Parameters a=5.154Å,c=13.781Å
Melting Point 1650
Curie Temperature 607
Mohs Hardness 5.5
Density 7.46g/cm3
Dielectric Constants ε110:51.7
ε330:44.5
Elastic Stiffness Coefficients CE11:2.33(×1011N/m2)
CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants d22:2.4(×10-11C/N)
d33:0.8(×10-11C/N)
Transmission range 400-4500nm
Electro-optical coefficients r33=30.4pm/V
Refractive index at 632.8nm no=2.176,ne=2.180



Typical Specifications:


Type Boule Wafer
Specifications
Diameter Φ3″   Φ3″ Φ4″
Length or Thickness ≤100mm ≤50mm 0.35-0.5mm
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z,and other cut
Ref. Flat Orientation X,Y
Ref. Flat Length 22±2mm 2mm 22±2mm 32±2mm
Front Side Polishing   Mirror polished 5-15Å
Back Side Lapping   0.3-1.0μm
Flatness(μm)   ≤15
Bow(μm)   ≤25



Crystro can offer other size and specification of wafers upon request.

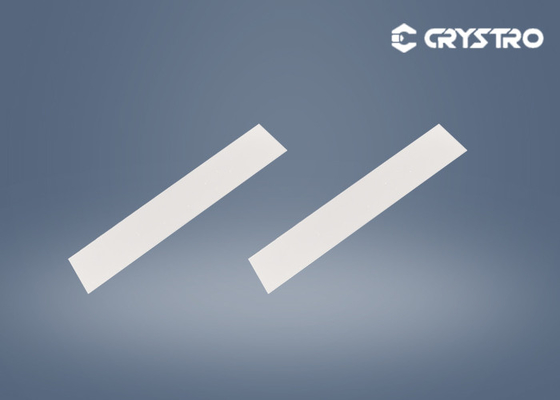

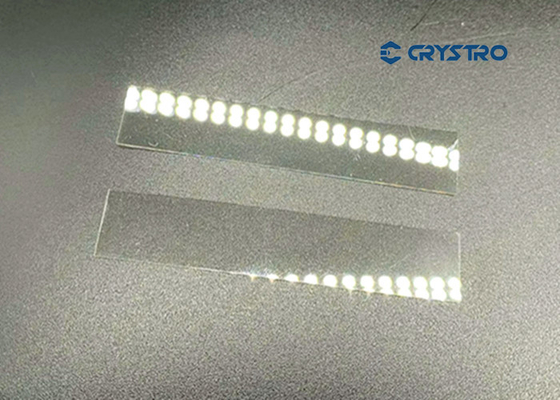

Fe LiTaO3 Nonlinear Optical Crystals For E-O Devices 0Fe LiTaO3 Nonlinear Optical Crystals For E-O Devices 1
