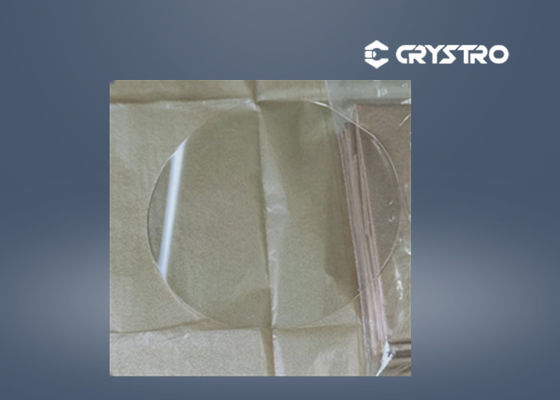

Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter

Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter
Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter

Large Image :  Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS/COC
Model Number: CR2111260-03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 20~200/pc
Packaging Details: Transparent clean box
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000pcs per month
Detailed Product Description
Material: Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter Crystal Sturucture: Trigonal,a = 5.154, C = 13.784A
Density: 7.45g/cm3 Transparency Range: 400 – 5000 Nm
Absorption Edge: 270nm Orientation: X-112°Y,36°Y,42°Y±0.5
Diameter: Up To 4inch Origin: China
High Light:

SAW Filter Piezoelectric Effect Crystal

,

SAW Filter Tantalate LiTaO3 Crystal

,

Dia100mm Piezoelectric Effect Tantalate

Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter



LiTaO3 is an E-O crystal widely used for E-O devices, due to its good optical NLO and E-O properties, as well as high damage threshold. CASTECH supplies high quality LiTaO3 boules and wafers with the following specifications for standard applications. We can also offer other specifications upon request.



Crystro's LiTaO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.

Other optical single crystals like GGG,SGGG,TGG,TSAG are also available.


Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature


Basic Properties of LiTaO3:



Crystal Structure Trigonal, Space group R3c, Point group 3m
Cell Parameters a=5.154Å,c=13.781Å
Melting Point 1650
Curie Temperature 607
Mohs Hardness 5.5
Density 7.46g/cm3
Dielectric Constants ε110:51.7
ε330:44.5
Elastic Stiffness Coefficients CE11:2.33(×1011N/m2)
CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants d22:2.4(×10-11C/N)
d33:0.8(×10-11C/N)
Transmission range 400-4500nm
Electro-optical coefficients r33=30.4pm/V
Refractive index at 632.8nm no=2.176,ne=2.180





Crystal orientations available: Z-cut, X-cut, Y-cut



Typical product sizes available

Bulk crystals:

up to 4 inch diameter and 0.25 mm thick



Crystal substrates / wafers (single side or double side polished)

10 x 10 x 0.5 mm
2 inch diameter x 0.5mm thick
4 inch diameter x 0.5mm thick

4 inch diameter x 0.25mm thick





Dia100mm Piezoelectric Effect Tantalate LiTaO3 Crystal For SAW Filter 0
