Piezoelectric Effect Crystals
Created with Pixso. Electro Acousto Optics Lithium Tantlate LiTaO3 Wafer

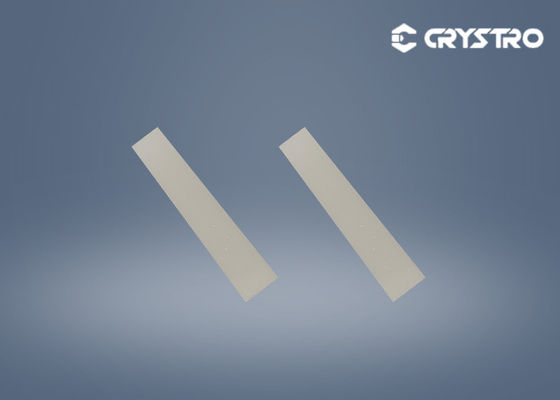

Electro Acousto Optics Lithium Tantlate LiTaO3 Wafer

Brand Name: Crystro
Model Number: CR211130-01
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Electro-Optics, Acousto-Optics Lithium Tantlate (LiTaO3) Wafer
Crystal Sturucture:
Trigonal,a = 5.154, C = 13.784A
Melting Point:
1650℃
Density:
7.45g/cm3
Curie Temperature:
607℃
Absorption Loss:
< 0.15 %/cm @ 1064 Nm
Thermal Conductivity:
8.78x 10-7 M2/sec
Optical Homogeneity:
~10-5
Packaging Details:
Transparent clean box
Supply Ability:
20000pcs per month
Highlight:

Piezoelectric Acousto LiTaO3 Wafer

,

Electro Optics LiTaO3 Wafer

,

Electro Optics Lithium Tantlate Wafer

Product Description

Electro-Optics, Acousto-Optics Lithium Tantlate (LiTaO3) Wafer



LiTaO3(LT) optical crystals, a kind of transparent crystal, with many kinds of effects like piezoelectricity, electro-optics, acousto-optics, non-linear optics, are excellent materials for acoustic transmission medium and high frequency transducers. LT crystals can be widely used in electro-optical devices, laser frequency multiplier and acousto-optic devices.



Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates


Application: surface acoustic wave filter, resonator, Q-switch, optical modulator, acoustooptic switch, laser frequency doubling, optical parametric oscillator, optical storage, high temperature and high frequency ultrasonic detector, infrared detector and optical pickup device.





Basic Properties of LiTaO3:


Properties LiTaO3(LT)
Type of Material Single Crystal
Crystal Structure Trigonal,a = 5.154, c = 13.784Å
Melting Point 1650℃
Curie Temperature 607℃
Transmission Range 400 – 5000 nm
Absorption edge 270nm
Absorption loss < 0.15 %/cm @ 1064 nm
Refractive Index no=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density 7.45g/cm3
Thermal Conductivity 8.78x 10-7 m2/sec
Optical homogeneity ~10-5
Hardness (Mohs) 5
Elastic Coefficient CE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constant ε110 52.7
ε330 44.5
Solubility in Water insoluble in water
NLO Coefficients d33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficients r31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold 2 MW/cm2@532nm
Standard Diameter dia150x50mm





Typical Specifications:

Specifications Boule Wafer
Diameter Φ3'' Φ4'' Φ3'' Φ4''
Length or Thickness (mm) ≤100 ≤50 0.35-0.5
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut
Ref.Flat Orientation X,Y
Ref.Flat Length 22±2mm 32±2mm 22±2mm 32±2mm
Front Side polishing / Mirror polished 5-15 Å
Back Side Lapping / 0.3-1.0μm
Flatness (μm) / ≤15
Bow (μm) / ≤25



Crystro can offer other size and specification of wafers upon request.
