Piezoelectric Effect Crystals
Created with Pixso. Lithium Tantalate Litao3 Crystal Ingot Piezoelectric Effect Crystals SAW Grade

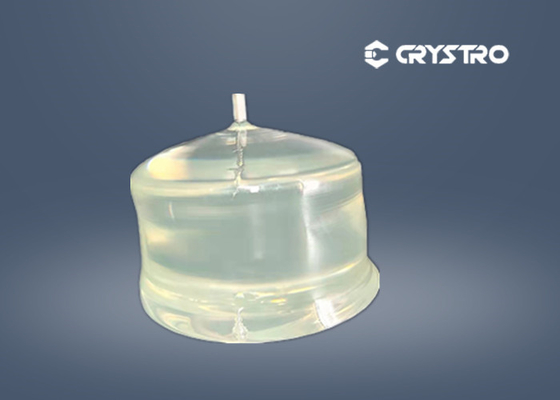

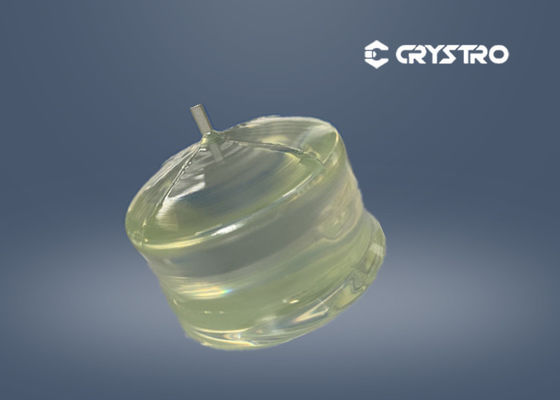

Lithium Tantalate Litao3 Crystal Ingot Piezoelectric Effect Crystals SAW Grade

Brand Name: Crystro
Model Number: CR211201-01
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 1-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Item:
SAW Grade Lithium Tantalate Litao3 Crystal Ingot With Competitive Price
Melting Point:
1650℃
Transparency Range:
400 – 5000 Nm
Absorption Edge:
270nm
Orientation:
X-112°Y,36°Y,42°Y±0.5
Diameter:
Up To 4inch
Origin:
China
Delivery:
1-4 Weeks
Packaging Details:
Transparent clean box
Supply Ability:
20000pcs per month
Highlight:

SAW Grade Litao3 Piezoelectric Crystal

,

Litao3 Ingot Piezoelectric Effect Crystals

,

SAW Grade Piezoelectric Effect Crystals

Product Description

SAW Grade Lithium Tantalate Litao3 Crystal Ingot With Competitive Price



Lithium tantalate (LiTaO3) is a perovskite which possesses unique optical, piezoelectric and pyroelectric properties which make it valuable for nonlinear optics, passive infrared sensorssuch as motion detectors, terahertz generation and detection, surface acoustic waveapplications, cell phones and possibly pyroelectric nuclear fusion. Considerable information is available from commercial sources about this salt.



Crystro's LiTaO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.
Other optical single crystals like GGG,SGGG,TGG,TSAG are also available.


Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature


Basic Properties of LiTaO3:





Properties LiTaO3(LT)
Type of Material Single Crystal
Crystal Structure Trigonal,a = 5.154, c = 13.784Å
Melting Point 1650℃
Curie Temperature 607℃
Transmission Range 400 – 5000 nm
Absorption edge 270nm
Absorption loss < 0.15 %/cm @ 1064 nm
Refractive Index no=2.176,ne=2.180(at 0.633 µm)
no=2.131,ne=2.134(at 1.2 µm)
Density 7.45g/cm3
Thermal Conductivity 8.78x 10-7 m2/sec
Optical homogeneity ~10-5
Hardness (Mohs) 5
Elastic Coefficient CE11 2.33(X 1011 N/m2)
CE33 2.77(X 1011 N/m2)
Dielectric Constant ε110 52.7
ε330 44.5
Solubility in Water insoluble in water
NLO Coefficients d33 = 13.8 pm/V
d22= 2.4 pm/V
d11= 0.85 pm/V
Electro-Optic Coefficients r31 =8.4 pm/V, @633nm
r22 =20 pm/V, @633nm
r33 =30.5 pm/V, @633nm
Damage Threshold 2 MW/cm2@532nm
Standard Diameter dia150x50mm




Typical Specifications:

Specifications Boule Wafer
Diameter Φ3'' Φ4'' Φ3'' Φ4''
Length or Thickness (mm) ≤100 ≤50 0.35-0.5
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut
Ref.Flat Orientation X,Y
Ref.Flat Length 22±2mm 32±2mm 22±2mm 32±2mm
Front Side polishing / Mirror polished 5-15 Å
Back Side Lapping / 0.3-1.0μm
Flatness (μm) / ≤15
Bow (μm) / ≤25



Crystro can offer other size and specification of wafers upon request.
