Polarized LT Wafer Litao3 Substrate Application For SAW Devices

Name: Polarized LT Wafer Litao3 Substrate Application For SAW Devices
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: CR211201-02
Price: 110.00 USD
Availability: InStock

Brand Name:	Crystro
Model Number:	CR211201-02
MOQ:	1pc
Price:	USD 20~200/pc
Delivery Time:	1-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS/COC

Material:

Polarized LT Wafer Litao3 Substrate Application For SAW Devices

Orientation:

X-112°Y,36°Y,42°Y±0.5

Rougness:

5-15 Å

Diameter:

Up To 4inch

Origin:

China

Delivery:

1-4 Weeks

Shipment:

Express,DHL.Fedex

Packing:

Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.

Packaging Details:

Transparent clean box

Supply Ability:

20000pcs per month

Highlight:

SAW Devices Litao3 Substrate

LT Wafer Litao3 Substrate

Trigonal Polarized Litao3 Substrate

Product Description

Polarized LT Wafer Litao3 Substrate Application For SAW Devices

Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.

Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates

Anhui Crystro participate in the kinds exhibitions every year: Laser World of Photonics Munich, Shanghai, Photonics West in San Francisco, CIOE in Shenzhen, etc.

Crystro provides:

Excellent photoelectric property
High Damage Threshold
High Curie Temperature

Basic Properties of LiTaO3:

Crystal Structure	Trigonal, Space group R3c, Point group 3m
Cell Parameters	a=5.154Å,c=13.781Å
Melting Point	1650℃
Curie Temperature	607℃
Mohs Hardness	5.5
Density	7.46g/cm3
Dielectric Constants	ε11/ε0:51.7
Dielectric Constants	ε33/ε0:44.5
Elastic Stiffness Coefficients	CE11:2.33(×1011N/m2)
Elastic Stiffness Coefficients	CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants	d22:2.4(×10-11C/N)
Piezoelectric Strain Constants	d33:0.8(×10-11C/N)
Transmission range	400-4500nm
Electro-optical coefficients	r33=30.4pm/V
Refractive index at 632.8nm	no=2.176,ne=2.180

Typical Specifications:

Crystal orientations available: Z-cut, X-cut, Y-cut

Typical product sizes available

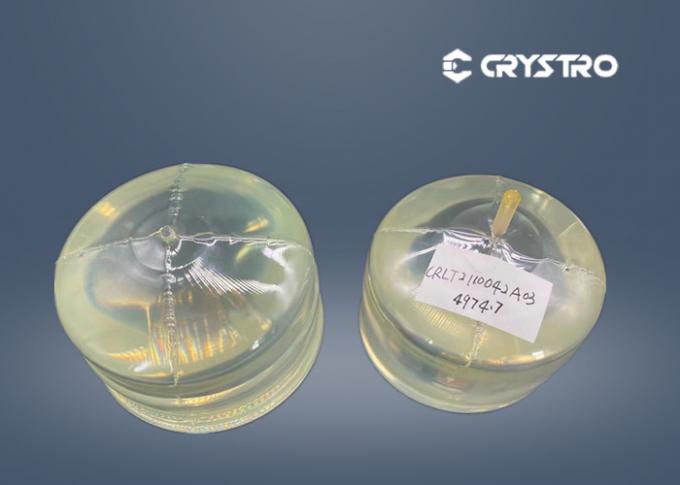

Bulk crystals:

up to 4 inch diameter and 25 mm thick

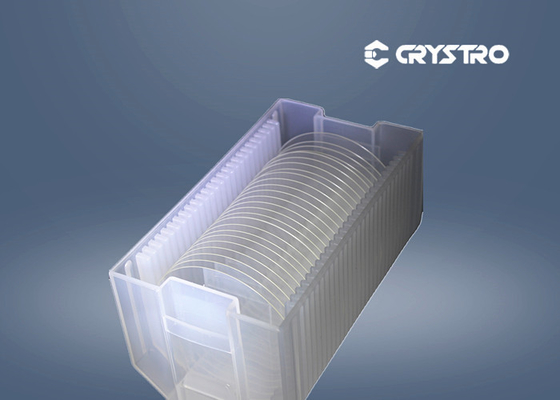

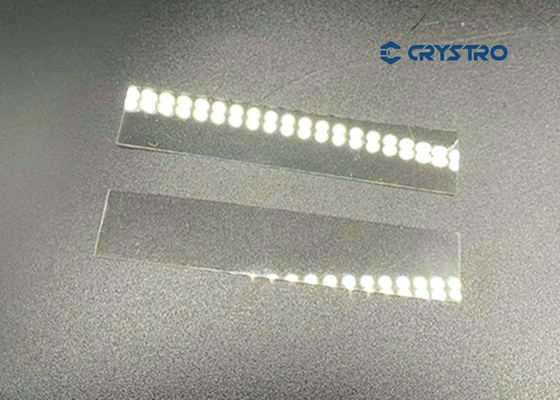

Crystal substrates / wafers (single side or double side polished)

10 x 10 x 0.5 mm
2 inch diameter x 0.25mm thick
4 inch diameter x 0.25mm thick

Crystro can offer other size and specification of wafers upon request.

Polarized LT Wafer Litao3 Substrate Application For SAW Devices 0
