Piezoelectric Effect Crystals
Created with Pixso. LiTaO3 Surface Acoustic Wave Single Crystal Wafer For SAW Filter

LiTaO3 Surface Acoustic Wave Single Crystal Wafer For SAW Filter

Brand Name: Crystro
Model Number: CR220129-05
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
LiTaO3 Surface Acoustic Wave Single Crystal Wafer For SAW Filter
Orientation:
X-112°Y,36°Y,42°Y±0.5
Flatness:
λ/8@632nm
Diameter:
Up To 6inch
Curie Temperature:
607℃
Absorption Loss:
< 0.15 %/cm @ 1064 Nm
Thermal Conductivity:
8.78x 10-7 M2/sec
Optical Homogeneity:
~10-5
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

SAW Filter Single Crystal Wafer

,

Acoustic Wave Single Crystal

,

SAW Filter Piezoelectric Effect Crystals

Product Description

LiTaO3 Surface Acoustic Wave Single Crystal Wafer For SAW Filter



Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.





Application:Lithium tantalate (LT) is used as SAW device which screens electromagnetic waves and only picks up specific frequencies. SAW device is used in mobile communication devices, including auto mobiles and TV and VTR tuners.



Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates




Basic Properties of LiTaO3:



Crystal Structure Trigonal, Space group R3c, Point group 3m
Cell Parameters a=5.154Å,c=13.781Å
Melting Point 1650
Curie Temperature 607
Mohs Hardness 5.5
Density 7.46g/cm3
Dielectric Constants ε110:51.7
ε330:44.5
Elastic Stiffness Coefficients CE11:2.33(×1011N/m2)
CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants d22:2.4(×10-11C/N)
d33:0.8(×10-11C/N)
Transmission range 400-4500nm
Electro-optical coefficients r33=30.4pm/V
Refractive index at 632.8nm no=2.176,ne=2.180



Typical Specifications:


Note: Other sizes and coatings are available upon request.



Crystal orientations available: Z-cut, X-cut, Y-cut



Typical product sizes available

Bulk crystals:

up to 6 inch diameter and 50 mm thick



Crystal substrates / wafers (single side or double side polished)

10 x 10 x 0.5 mm
2 inch diameter x 0.2mm thick
4 inch diameter x 0.2mm thick



Specifications Boule Wafer
Diameter Φ3'' Φ4'' Φ3'' Φ4''
Length or Thickness (mm) ≤100 ≤50 0.2-0.5
Orientation 127.86°Y,64°Y,135°Y,X,Y,Z, and other cut
Ref.Flat Orientation X,Y
Ref.Flat Length 22±2mm 32±2mm 22±2mm 32±2mm
Front Side polishing / Mirror polished 5-15 Å
Back Side Lapping / 0.2-1.0μm
Flatness (μm) / ≤15
Bow (μm) / ≤25



Crystro can offer other size and specification of wafers upon request.

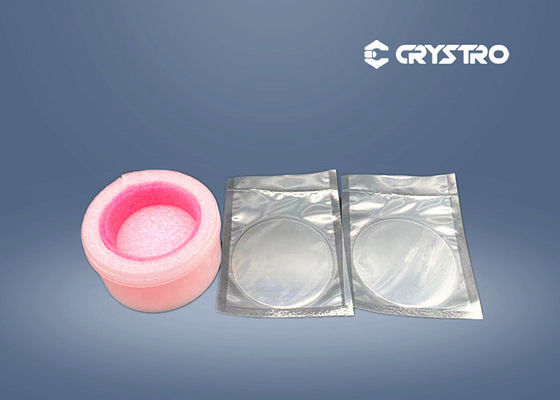

LiTaO3 Surface Acoustic Wave Single Crystal Wafer For SAW Filter 0
