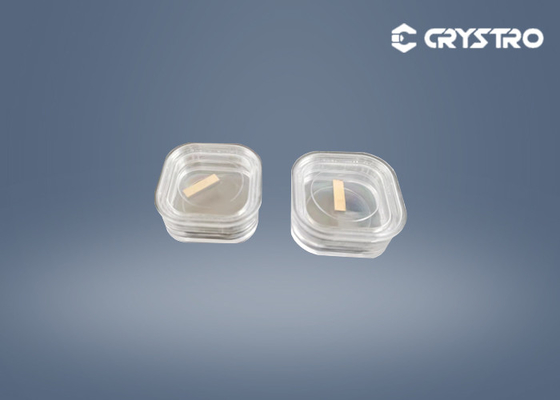

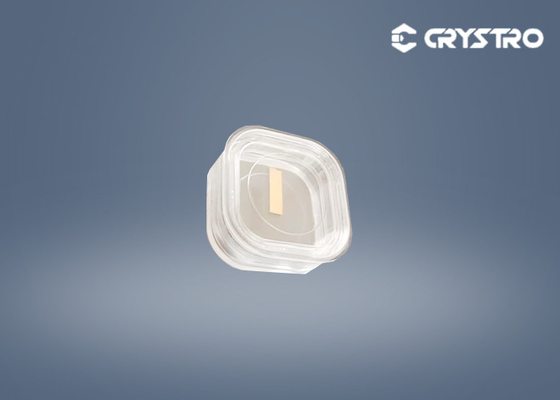

Gold Coated Lithium Niobate Crystals With Nonlinear Effect

large.img.alt
small.img.alt small.img.alt

Large Image :  Gold Coated Lithium Niobate Crystals With Nonlinear Effect

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS/COC
Model Number: CR211011-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD 20~200/pc
Packaging Details: Transparent clean box
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000pcs per month
Detailed Product Description
Material: Gold Coated Lithium Niobate Crystals With Nonlinear Effect Crystal Sturucture: Trigonal, Space Group R3c, Point Group 3m
Melting Point: 1253℃ Origin: China
Shipment: Express,DHL.Fedex Packing: Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.
Orientation: Z-cut, Y-cut, Y-cut 36° Off, Y-cut 64° Off, Y-cut 128° Off Primary Orientation Flat: 22mm+/-2mm (3-inch) 32mm+/-2mm (4-inch)
High Light:

Gold Coated Lithium Niobate Crystals

,

Nonlinear Lithium Niobate Crystals

,

Nonlinear Effect LiNbO3 Crystals

Gold Coated Lithium Niobate Crystals With Nonlinear Effect



LiNbO3 (Lithium Niobate) crystal is widely used as frequency doublers for wavelength > 1mm and optical parametric oscillators (OPOs) pumped at 1064 nm. Due to its large electro-optic and acousto-optic coefficients.



Gold Coated Lithium Niobate Crystals with electro-optic, nonlinear and piezoelectric property



Lithium niobate (LiNbO3) has excellent electro-optic, nonlinear and piezoelectric properties of its inherent materials. Applications using large electro-optic coefficients of lithium niobate include optical modulation and Q switching at infrared wavelengths. Applications of large nonlinear coefficients using LiNbO3 include optical parametric oscillations, different-frequency mixing to generate tunable infrared wavelengths, and second harmonic generation. Applications using piezoelectric properties include ultrasonic transducers and acoustic surface wave devices.





Crystro provides:

  • LiNbO3 wedges used for fiber optical isolators and circulators.
  • Reliable delivery
  • Strict quality control
  • Technical support
  • Very competitive prices



LiNbO3 Crystal Applications:

1. Pockels Cells
2. Q-switches
3. Phase modulators
4. Surface acoustic wave(SAW) wafers



We can offer:



Product 3" 4" 6" 8" LN wafer Saw/Optical grade
Cut X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized
Curie Temp 1142°C±3°C
Doped with Zn, MgO single or double doped available
Surface

single or double sides polish

(DLP/SLP/ SSP/DSP all available)

Thickness 0.18/0.25/0.35/0.50/1.00 + mm
TTV range < 1~5µm
BOW ± (25µm ~40um )
Warp <= 35µm
LTV (5mmx5mm) <1.5 um
PLTV(<0.5um) ≥98% (5mm*5mm) with 2mm edge excluded
Edge Compl't with SEMI M1.2@with GC800# .regular at C typed
Primary Flats available, per request
Polished side Roughness Ra<=5A
Back Side Roughness Ra:0.5-1.0µm GC#1000
Edge Rounding Compliant with SEMI M1.2 Standard/refer to IEC62276
Cracks, saw marks, stains

None
