Piezoelectric Effect Crystals
Created with Pixso. 4" LiTaO3 Lithium Tantalate Wafer Y-Cut For Surface Acoustic Wave Devices

4" LiTaO3 Lithium Tantalate Wafer Y-Cut For Surface Acoustic Wave Devices

Brand Name: Crystro
Model Number: CR220304-03
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
4" LiTaO3 Lithium Tantalate Wafer Y-Cut For Surface Acoustic Wave Devices
Melting Point:
1650℃
Transparency Range:
400 – 5000 Nm
Refractive Indices:
No=2.176,ne=2.180(at 0.633 µm) No=2.131,ne=2.134(at 1.2 µm)
Orientation:
X-112°Y,36°Y,42°Y±0.5
Surface Quality:
20/10
Diameter:
Up To 6inch
Origin:
China
Packaging Details:
Transparent clean box
Supply Ability:
2000pcs per month
Highlight:

Surface Acoustic Wave Devices LiTaO3 Wafer

,

LiTaO3 Lithium Tantalate Wafer

,

4" Lithium Tantalate Wafer

Product Description

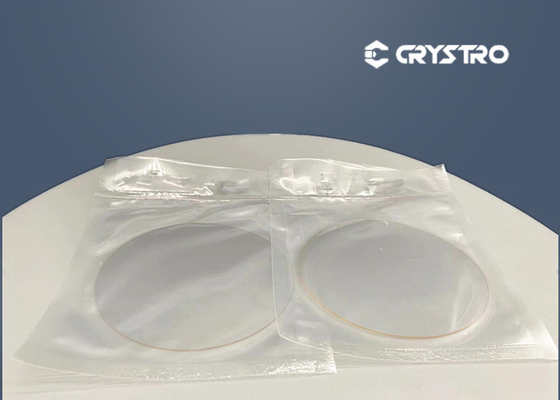

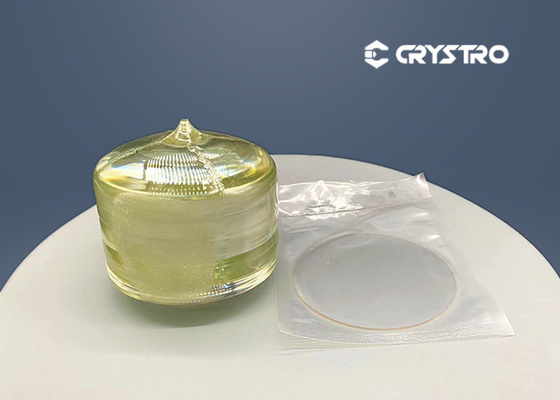

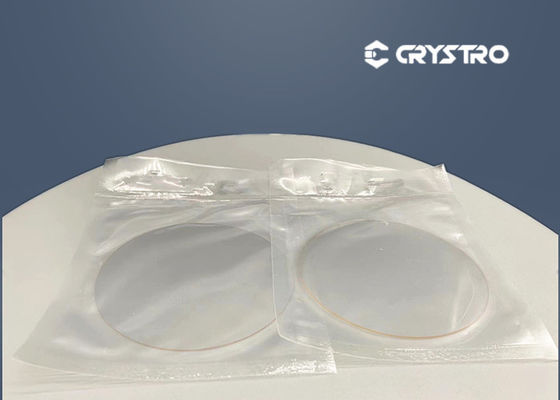

4" LiTaO3 Lithium Tantalate Wafer Y-Cut For Surface Acoustic Wave Devices





Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.



Crystro's LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates


c.Anhui Crystro participate in the kinds exhibitions every year: Laser World of Photonics Munich, Shanghai, Photonics West in San Francisco, CIOE in Shenzhen, etc.


Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature

4" LiTaO3 Lithium Tantalate Wafer Y-Cut For Surface Acoustic Wave Devices 0


Basic Properties of LiTaO3:

Crystal Structure Trigonal
Lattice constant a=5.154Å,c=13.783Å
Density 7.45g/cm3
Melting Point 1650
Curie Point 603±2
Mohs Hardness 5.5-6 Mohs
Dielectric Constant es11/eo:39~43, es33/eo:42~43et11/eo:51~54, et33/eo:43~46
Thermal Conductivity 1015wm
Thermal Expansion Coefficient a1=a2=1.61×10-6/, a3=4.1×10-6/
Refractive Indices n0=2.176 ne=2.180 @ 633mn
E-O Coefficient R33=30.4
Electro-mechanical coupling factor R15≥0.3
pyroelectric coefficient 2.3×10-7 C/cm2/K
transmission range 400-5000nm


Typical Specifications:



Size Boule or wafer ,Acoustic or Optical grade
Doping Fe, No Doping or With Fe
Boule Length ≥50mm
Wafer Thickness 0.25,0.35,0.50(mm)
Orientation Y42°/Y36°/X/Y/Z or Upon Request
Surface Process Single/Double Sides Polishing
TTV < 10μm
BOW BOW ± (25μm ~40um )
Warp ≤35μm
Flat Width 32.0±2.0(mm) or Upon Request
Roughness Ra≤10Å
Chamfe ≤0.1mm@45°
