Piezoelectric Effect Crystals
Created with Pixso. Surface Acoustic Wave Propagation On Piezoelectric Crystal LT LN Wafers

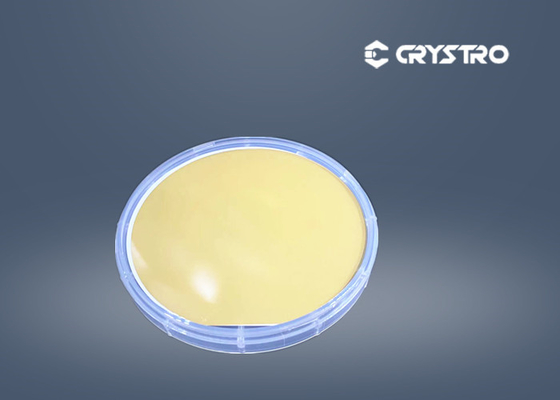

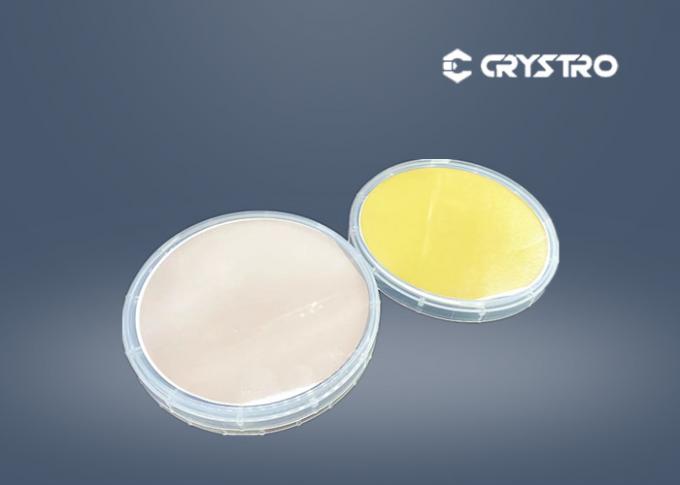

Surface Acoustic Wave Propagation On Piezoelectric Crystal LT LN Wafers

Brand Name: Crystro
Model Number: CR2202241-02
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 1-4weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Surface Acoustic Wave Propagation On Piezoelectric LT LN Crystal Wafers
Crystal Sturucture:
Trigonal,a = 5.154, C = 13.784A
Melting Point:
1650℃
Applications:
Surface Acoustic Wave Devices
Transparency Range:
400 – 5000 Nm
Finish:
DSP, SSP
Certification:
ISO:9001, ISO:14001
Orientation:
X-112°Y,36°Y,42°Y±0.5
Packaging Details:
Transparent clean box
Supply Ability:
20000pcs per month
Highlight:

Surface Acoustic Wave Piezoelectric Crystal

,

Surface Acoustic Wave Propagation Crystals

Product Description

Surface Acoustic Wave Propagation On Piezoelectric Crystal LT LN Wafers

Surface Acoustic Wave Propagation On Piezoelectric LT LN Crystal Wafers

Crystro can customize Surface Acoustic Piezoelectric Wafers including Lithium Niobate,Lithium Tantalate,Quartz Crystal as reuqired cutting orientation and size,our Piezoelectric Effect crystals are grown by Czochralski method. Max diameter reach 6inch,we can custom size and specs ,rougness<0.5nm.
Dia 3" 4" 6" wafers are all available as per requirement.

Crystro possess Corning Flatmaster 200 Profiler, Laser marking equipment, AOI and 6-step cleaning line.




Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature

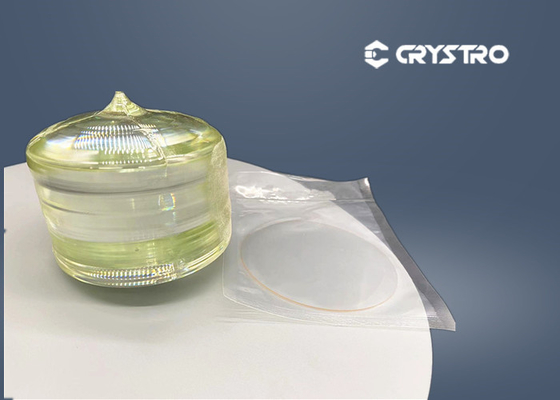

Surface Acoustic Wave Propagation On Piezoelectric Crystal LT LN Wafers 0



Basic Properties of LiTaO3:


Material Lithium Niobate Lithium Tantalate Quartz Crystal
Diameter / Size 3’’, 4’’, 6’’, 8’’ 3’’, 4’’, 6’’ 3’’, 4’’, 5’’, 6’’, 8’’
Cut Type X / Y / Z X / Y-Z / X-112Y X / Y / Z
36Y / 64Y/128Y 28Y / 36Y / 42Y AT / ST / DT
Surface Finish Double side polish / Single side polish
Thickness 0.25mm / 0.35mm / 0.50mm / 1.00mm / 2.00mm
TTV < 5um
PLTV >98% (5mm*5mm)
LTV < 1.5um
Bow -25um < Bow < +25um
Warp < 30um
Roughness Ra<0.5nm, Ra<1nm
Curie Temp. 1142℃ ± 2℃ 605℃ ± 2℃ 573℃
Edge Profile Round Ground, "C" Shape
Flats 22±2mm, 32.5±2mm, 47.5±2mm, 57.5±2mm, Notch
As per request
Dope with Er, MgO Fe with or without seed
Front Side Roughness Ra<= 10A
Back Side Roughness Ra: 0.2--0.7um GC#1000, GC#2000
Appearance No Cracks, saw marks, stains
Single Domian Completed Polarization / Reduced No Stress
