Piezoelectric Effect Crystals
Created with Pixso. Piezo LiNbO3 LiTaO3 Wafer For Semiconductor POI And MEMS Customized

Piezo LiNbO3 LiTaO3 Wafer For Semiconductor POI And MEMS Customized

Brand Name: Crystro
Model Number: CR2202241-04
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 1-4weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Material:
Customized Piezo LiNbO3 LiTaO3 Wafer For Semiconductor POI And MEMS
Diameter:
2inch-8inch
Crsytal:
LiNbO3 /LiTaO3 /Qurtz
Applications:
Surface Acoustic Wave Devices
Transparency Range:
400 – 5000 Nm
Finish:
DSP, SSP
Certification:
ISO:9001, ISO:14001
Orientation:
X-112°Y,36°Y,42°Y±0.5
Packaging Details:
Transparent clean box
Supply Ability:
20000pcs per month
Highlight:

Customized LiTaO3 Wafer

,

Semiconductor POI LiTaO3 Wafer

,

Semiconductor MEMS LiTaO3 Wafer

Product Description

Customized Piezo LiNbO3 LiTaO3 Wafer For Semiconductor POI And MEMS

Crystro can customize Surface Acoustic Piezoelectric Wafers including :

Lithium Niobate,Lithium Tantalate,Quartz Crystal as reuqired cutting orientation and size,our Piezoelectric Effect crystals are grown by Czochralski method. Max diameter reach 6inch,we can custom size and specs ,rougness<0.5nm.
Dia 3" 4" 6" wafers are all available as per requirement.


Crystro possess Corning Flatmaster 200 Profiler, Laser marking equipment, AOI and 6-step cleaning line.



Crystro provides:



Excellent photoelectric property
High Damage Threshold
High Curie Temperature

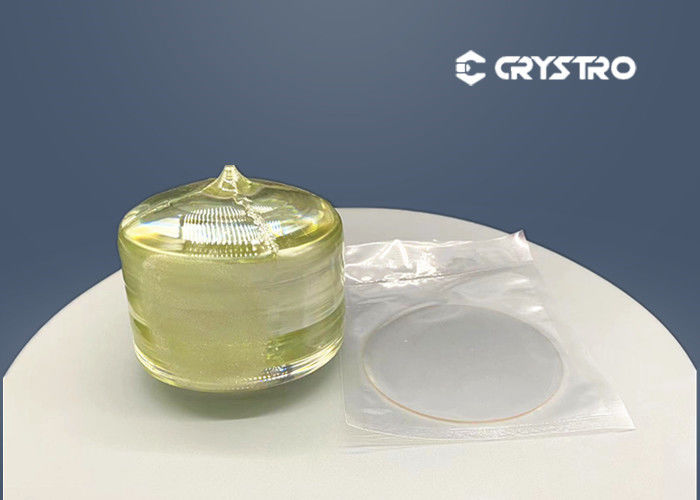

Piezo LiNbO3 LiTaO3 Wafer For Semiconductor POI And MEMS Customized 0


Basic Properties of LiTaO3:



Material Lithium Niobate Lithium Tantalate Quartz Crystal
Diameter / Size 3’’, 4’’, 6’’, 8’’ 3’’, 4’’, 6’’ 3’’, 4’’, 5’’, 6’’, 8’’
Cut Type X / Y / Z X / Y-Z / X-112Y X / Y / Z
36Y / 64Y/128Y 28Y / 36Y / 42Y AT / ST / DT
Surface Finish Double side polish / Single side polish
Thickness 0.25mm / 0.35mm / 0.50mm / 1.00mm / 2.00mm
TTV < 5um
PLTV >98% (5mm*5mm)
LTV < 1.5um
Bow -25um < Bow < +25um
Warp < 30um
Roughness Ra<0.5nm, Ra<1nm
Curie Temp. 1142℃ ± 2℃ 605℃ ± 2℃ 573℃
Edge Profile Round Ground, "C" Shape
Flats 22±2mm, 32.5±2mm, 47.5±2mm, 57.5±2mm, Notch
As per request
Dope with Er, MgO Fe with or without seed
Front Side Roughness Ra<= 10A
Back Side Roughness Ra: 0.2--0.7um GC#1000, GC#2000
Appearance No Cracks, saw marks, stains
Single Domian Completed Polarization / Reduced No Stress
