Brand Name: | CRYSTRO |
Model Number: | CR200820-02 |
MOQ: | 1pc |
Price: | $50-$500 |
Delivery Time: | 3-4 weeks |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |

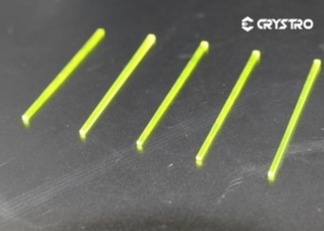

Crystro Ce:LuAG Transparent Single Crystal For LED Lighting Application
LuAG:Ce doped lutetium aluminum garnet crystal is a new type of material within the garnet series, which would decay fast and has the characteristics of high density, high light output and fast decay, and can be widely used in the applications of X-ray imaging, CT and other industrial fields.
Main Properties:
Property | Ce:LuAG |
Chemical composition | Lu3Al5O12 |
Melting (℃) | 1970℃ |
Symmetry | Cubic |
Structure | Ia3d |
Cell parameters(Å) | 11.914 |
Hardness | 8.5 |
Density(g/cm3) | 6.73 |
Thermal conductivity(W/℃cm,25℃) | 0.08 |
expanding coefficient(10-6/℃) | 8.8 |
Refractive index(λ=1.079μm) | 1.84 |
Emission peak (nm) | 510 |
Light yield (Photons•Mev-1) | 15000 |
Decay time(ns) | 80 |
Energy resolution | <8% |
Zeff | 60.6 |
Crystro can offer:
Material Properties:
Orientation Tolerence | <0.5° |
Thickness/Diameter Tolerance | ±0.05 mm |
Parallel | 10'' |
Perpendicular | 5' |
surface Quality | 10/5 |
Clear Aperture | >90% |
Chamfer | <0.2×45° |
Maximum dimensions | dia 95 mm |
![]() |
