Brand Name: | Crystro |
Model Number: | CR210628-05 |
MOQ: | 1pc |
Price: | USD 20-200/pc |
Delivery Time: | 4-5 weeks |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |

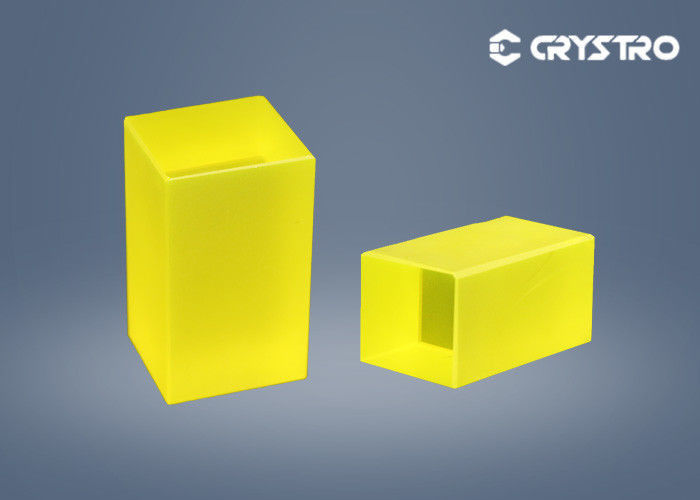

High Quality Cerium Doped Gadolinium Aluminium Ce:Gallium Garnet GAGG Crystal
GAGG:Ce (Cerium-doped Gadolinium Aluminium Gallium Garnet) is a promising new scintillator crystal. A wide array of interesting features, such as high light output, fast decay times, almost non-existent intrinsic background and robustness, make GAGG:Ce an interesting candidate as a component of new space-based gamma-ray detectors. As a consequence of its novelty, literature on GAGG:Ce is still lacking on points crucial to its applicability in space missions. In particular, GAGG:Ce is characterized by unusually high and long-lasting delayed luminescence.
Main Advantages:
1. Relatively bright – emitting >50,000 photons/MeV
2. Good absorbers with good stopping powers - density 6.63 g/cm³
3. Broadly emitting with a 540nm peak
4. Good Energy resolution
Main Applications:
γ-ray detection
X-ray medical imaging
Nuclear physics
Nuclear radiation detection
PET
Main Properties:
Properties | Units |
Wavelength (Max. Emission) | 520 nm |
Wavelength Range | 475 - 800 nm |
Decay Time | 50 - 150 ns |
Light Yield | 40 - 60 photons/keV |
Refractive Index | 1.9 @540nm |
Density | 6.63 g/cm³ |
Atomic Number (Effective) | 54.4 |
Melting Point | 1850 ºC |
Thermal Expansion Coeff. | TBA x 10‾⁶ C⁻¹ |
Hardness | 8 Mhos |
Specifications:
Chamfer | <0.2×45° |
Orientation Tolerance | < 0.5° |
Thickness/Diameter Tolerance | ±0.05 mm |
Clear Aperture | >90% |
Wavefront Distortion | dia 70mm |
Surface Quality | 10/5 (Scratch/Dig) |
Parallel | 10″ |
Perpendicular | 5′ |
![]() |
