Piezoelectric Effect Crystals
Created with Pixso. Lithium Niobate LiNbO3 Single Crystals For Fiber Optical Isolators And Circulators

Lithium Niobate LiNbO3 Single Crystals For Fiber Optical Isolators And Circulators

Brand Name: Crystro
Model Number: CR220129-08
MOQ: 1pc
Price: USD 20~200/pc
Delivery Time: 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
SGS/COC
Formula:
LiNbO3
Crystal Sturucture:
Trigonal, Space Group R3c, Point Group 3m
Mohs Hardness:
5
Delivery:
1-4 Weeks
Packing:
Individual Container For Each Substrate, Packed In Bag Filled With Inert Gas.
Primary Orientation Flat:
22mm+/-2mm (3-inch) 32mm+/-2mm (4-inch)
Standard Size:
φ6" (150mm) +/-0.3mm
Curie Temperature:
1142℃ +/-0.7℃
Packaging Details:
Transparent clean box
Supply Ability:
20000pcs per month
Highlight:

Circulators Lithium Niobate Single Crystals

,

Fiber Optical Isolators LiNbO3 Crystals

Product Description

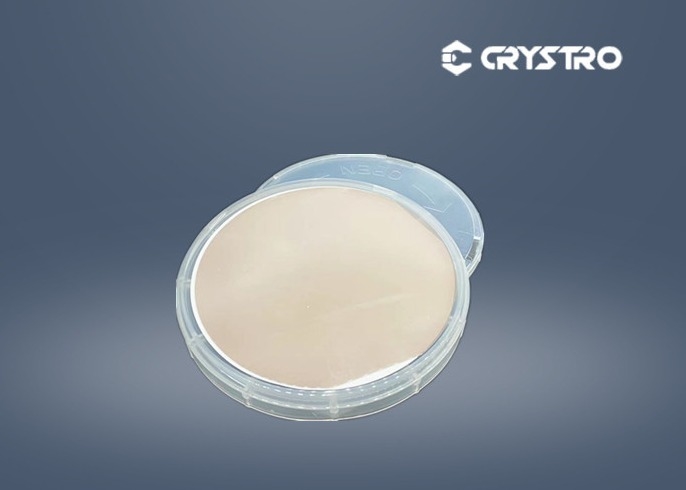

Crystro High Quality Lithium Niobate LiNbO3 LN Single Crystals



Lithium niobate (LN), an outstanding and versatile material, has influenced our daily life for decades: from enabling high-speed optical communications that form the backbone of the Internet to realizing radio-frequency filtering used in our cell phones. This half-century-old material is currently embracing a revolution in thin-film LN integrated photonics. The success of manufacturing wafer-scale, high-quality, thin films of LN on insulator (LNOI), accompanied with breakthroughs in nanofabrication techniques, have made high-performance integrated nanophotonic components possible.



Crystro provides:

  • LiNbO3 wedges used for fiber optical isolators and circulators.
  • Reliable delivery
  • Strict quality control
  • Technical support
  • Very competitive prices



LiNbO3 Crystal Applications:

1. Pockels Cells
2. Q-switches
3. Phase modulators
4. Surface acoustic wave(SAW) wafers



Basic Properties of LiNbO3:



Growth method Czochralski method
Crystal structure Trigonal system
Lattice constant a=b=5.148Å c=13.863 Å
Melting point 1250℃
Curie temperature 1142 ℃
Density 4.64 g/cm3
Mohs Hardness 5
Spectral transmission range 0.4-2.9um
Refractive index No=2.286 ne=2.203 (632.8nm)
Nonlinear coefficient D33=34.45, d31=d15=5.95, d22=13.07 (PMV-1)
Electro-optic coefficient γ13=8.6,γ22=3.4,γ33=30.8,γ51=28.0,γ22=6.00(pmv-1)
Spectral transmission range 370 - 5000nm >68% (632.8nm)
Thermal expansion coefficient A11=15.4 x 10-6/k, a33=7.5 x 10-6/k





  Optical grade LiNbO3 SAW grade LiNbO3
Orientation X-cut, Z-cut (+/-0.2°) Z-cut, Y-cut,
Y-cut 36° off, Y-cut 64° off, Y-cut 128° off
Primary Orientation Flat 22mm+/-2mm (3-inch) 22mm+/-2mm (3-inch)
32mm+/-2mm (4-inch) 32mm+/-2mm (4-inch)
Standard Size φ3"(76.2mm) +/-0.3mm φ3" (76.2mm) +/-0.3mm
φ4" (100mm) +/-0.3mm φ4" (100mm) +/-0.3mm
φ6" (150mm) +/-0.3mm φ6" (150mm) +/-0.3mm
10x10mm +/-0.1mm 10x10mm +/-0.1mm
Or others Or others
Thickness 500μm +/-20μm 500μm +/-20μm
1000μm +/-20μm 1000μm +/-20μm
350μm +/-20μm 350μm +/-20μm

Polishing Single or Both side polished Single or Both side polished
Surface Finish: 20/10 or 10/5 Surface Finish: 20/10 or 10/5
TTV ≤10um ≤10um
Curie temperature 1142℃ +/-0.7℃ 1142℃ +/-3℃
