Created with Pixso. SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films

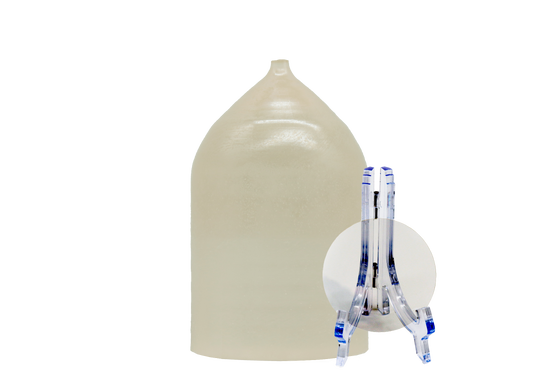

SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films

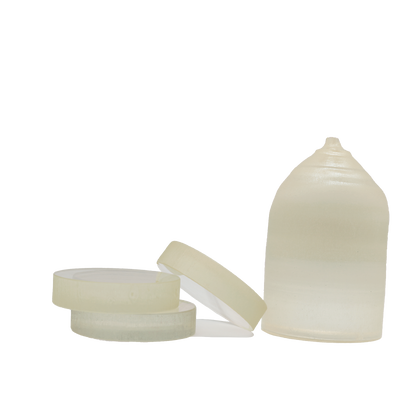

  • name
  • name

SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films

Brand Name: Crystro
Model Number: SCR-2026-26-02
Delivery Time: 5-6weeks
Payment Terms: T/T, Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Materials:
SGGG
Molecular Formula:
Substituted Gd3GasO12
Crystal Structure:
Cubic Crystal System
Lattice Constant:
A=12.497 A
Growing Methods:
Czochralski
Mohs Hardness:
7.5
Density:
7.09g/cm3
Melting Point:
1730°C
Reflection Coefficient:
1.954 @ 1064nm
Highlight:

SGGG Crystal substrate for epitaxial growth

,

Ca-Mg-Zr doped Gadolinium Gallium Garnet

,

Bismuth iron garnet thin film material

Product Description

SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films, high optical uniformity and stable crystal lattice structure for magneto-optical devices.



Gadolinium gallium garnet (GGG) substrates, one of the earliest developed materials for use as substrates, are unsuitable due to their extremely small lattice constants. As a result, SGGG crystals, which use calcium, magnesium, and zirconium as substitution ions, are more suitable as substrates for bismuth-iron garnet epitaxial films.



Indicator Name Dimensions or Other Information Reference Indicators
Dimensic Nominal Size 3/4inch
Diameter (mm) 3" 76.20±0.3
  4" 101.60±0.3
Thickness (um) 3" 630±30
  4" 800±30 or custom
Crystaloptics / (111)±0.1°
Lattice constant / 12.497±0.003A
Position the edges Main positioning edge [-110]±2°
  Sub-position the edges [-1-12]±2°
Surface Quality Flatness (degree) Maximum value minimum value within 80% coverage area center ≤6um
  TTV Maximum value - minimum value within 80% coverage area center ≤6um
  Dislocations (dislocations) Within 80% coverage area, center region <10/cm2
    Within 10% of the center area covering 80% of the total surface area
Other Defects
(Extrudedsurface)		   Within 10% of the center area covering 80% of the total surface area





Key features:

Low fault density.

High consistency in lattice constants.

Typical applications:

The substrate material for BIG magnetoelectric epitaxial films.

Magnetic refrigeration.
