Laser System Pockels Cell LGS Q Switch Piezocrystal LGS

Laser System Pockels Cell LGS Q Switch Piezocrystal LGS

Brand Name:	Crystal
MOQ:	1pc
Price:	USD 20~200/pc
Delivery Time:	4-5 wweeks
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Transparent clean box

Supply Ability:

5000pcs per month

Highlight:

magneto optic modulator

pockel cell q switch

LGS Q Switch Piezocrystal

Product Description

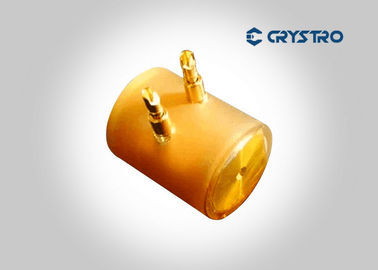

LGS Series Electro-optic (EO) Q-switch Pockels Cell

A new kind of EO Q-switch is designed by use of a La3Ga5SiQ14 (LGS) crystal. LGS crystal is one kind of optically active NLO material with very high damage threshold (about 9 times as that of LN), excellent E-O coefficient, high temperature stability (better than quartz), the Q-switch is based on the consideration that the total rotation angle of the polarization plane is zero, whereas the polarized wave propagates through the Pockels cell back and forth, with the polarization plane gyration and electro-optic effect existing simultaneously, therefore it is widely used in E-O components such as E-O modulator, Q-switch, etc.

The LGS (LG-EO-Q) series Q-switch (Pockels Cell) is a practical electro-optic device that can be used in medium output energy lasers to partially take the place of DKDP and LiNbO3 series Q-switches.

Features:

LGS -based Q-switch (Pockels cell);

For wavelengths up to 3.2μm;

Transmitted Wave Front Distortion: < l/4;

Damage threshold: >900MW/cm2 (@1064nm, 10ns, typical, not guaranteed);

LGS available for medium power systems, partially take place of DKDP and LiNbO3 series Q-switches.

Main Properties:

Chemical Formula	La3Ga5SiQ14
Crystal Structure	Trigonal; a＝b＝7.453Å,c＝6.293Å
Density	5.75 g/cm3
Melting Point	1470 °C
Transparency Range	242 - 3200 nm
Refractive Index	1.89
Electro-Optic Coefficients	γ41＝1.8 pm/V, γ11＝2.3 pm/V
Resistivity	1.7×1010 Ω·cm
Deliquescence	No
Thermal Expansion Coefficients	α11=5.15×10-6 /K (⊥Z-axis) ; α33=3.65×10-6 /K (∥Z-axis)
